Most homelab builds fail at the network layer before the first cable is seated. A poorly placed switch in a compact rack creates thermal hotspots, forces cable runs that fight gravity, and makes every future upgrade painful. Rack network design in small enclosures is not a simplified version of enterprise planning. It is its own discipline with stricter constraints and zero tolerance for sloppy assumptions. If you are running a Minisforum MS-01 cluster or an Intel NUC Pro stack and wondering why your thermals are spiking or your cable management looks like a wiring closet nightmare, switch placement is almost certainly part of the problem.
Table of Contents
- Quick Takeaways
- Why Switch Placement Defines Your Rack
- Thermal Logic: Heat Rises, So Should Your Planning
- Cable Management and Port Density Tradeoffs
- Comparing Switch Placement Strategies
- Power Integration and Switch Positioning
- Homelab Networking in Mini PC Dense Racks
- Frequently Asked Questions
- References
Quick Takeaways
| Key Insight | Explanation |
|---|---|
| Place managed switches in the middle third of the rack | Middle placement balances cable reach to both top-mounted compute and bottom-mounted power, reducing average run length by 30 to 40 percent compared to bottom placement. |
| Never mount a switch directly above a high-wattage compute node | Switches recirculate hot exhaust into their intake when positioned above dense compute nodes, raising switch operating temps by 8 to 15 degrees Celsius in practice. |
| Rear-facing switch ports demand rear cable management channels | Without a dedicated rear channel, patch cables cross active airflow paths, creating turbulence that degrades cooling efficiency across neighboring units. |
| 1U unmanaged switches are not always the right choice for compact racks | A purpose-built managed switch with VLAN support gives you traffic isolation critical for separating IPMI, storage, and production traffic in a small deployment. |
| PoE switches generate significantly more heat per U than passive switches | A 150W PoE budget switch can raise ambient rack temp by 4 to 6 degrees Celsius in an enclosed 6U to 12U rack, affecting all neighboring hardware. |
| Patch panel placement should mirror switch placement | A patch panel mounted more than 2U away from its associated switch forces long horizontal cable runs that block front airflow on adjacent units. |
| Front-port switches simplify maintenance in wall-mount or shallow racks | In racks under 18 inches deep, front-access switches eliminate the need to reach behind units for reseating cables, cutting service time by half. |
Why Switch Placement Defines Your Rack
The position of your network switch is the single decision that cascades into every other physical design choice in a compact rack. It dictates where your patch panel goes, how long your power runs need to be, which U slots are available for compute, and whether your airflow strategy has any chance of working. Treating switch placement as an afterthought is one of the most common mistakes in homelab builds.
In practice, builders tend to drop the switch wherever there is space left after mounting compute nodes and storage. That approach produces a rack that works on day one but becomes increasingly frustrating as you add gear. Planned switch placement treats the switch as a structural anchor, not a leftover component.
The data consistently shows that cable length is the most underestimated variable in compact rack builds. A switch mounted at the bottom of a 9U rack serving nodes at the top forces patch cables of 1.5 to 2 meters minimum. Those cables bunch, sag, and block the front face of the rack. Mounting the switch at position 5U in a 9U rack cuts average cable length to under 0.5 meters for most connections.
Thermal Logic: Heat Rises, So Should Your Planning
Heat management in a compact rack is non-negotiable. Mini PC clusters like Minisforum MS-01 nodes packed into a 9U or 12U enclosure generate sustained heat loads that require disciplined airflow planning. Where you place your switch either helps or hurts that airflow, and there is rarely a neutral outcome.
The Hot Zone Problem at the Top of the Rack
Hot air rises. This is physics, not preference. The top third of any enclosed rack is the hottest zone by default, especially without active rear exhaust. Mounting a switch in the top two positions of a compact rack means that switch is breathing the exhaust of everything below it. A common mistake is treating the top of the rack as wasted space and filling it with the switch just to clear room below.
The better approach is to mount high-heat-tolerance passive components like patch panels at the top, keep the switch in the middle zone, and place compute nodes where their exhaust exits toward the top or rear without recirculating. Switches running at elevated temperatures experience higher packet error rates and shortened capacitor lifespan. According to Cisco's hardware design guides, every 10 degree Celsius increase above rated operating temperature can halve the expected component lifespan of network switching hardware.
Airflow Direction and Switch Orientation
Most 1U rack switches use front-to-rear airflow, with intake on the port side and exhaust at the rear. This orientation works well when the switch is isolated from its neighbors by at least 1U of clearance or a blanking panel. Without that clearance, the switch pulls in warm air that other components have already heated.
Blanking panels are not optional in compact racks. Every empty U that is not blanked creates a bypass path for hot air to recirculate from rear to front. In a 9U rack with three empty slots, thermal efficiency drops measurably enough to trigger CPU throttling in adjacent mini PCs under sustained load.
Pro tip: If you are using a Minisforum MS-01 cluster in a HiveRack-style compact enclosure, keep at least one blanking panel between the switch and the nearest compute node. The few dollars and one U of space this costs are far cheaper than premature hardware failure or performance throttling.
Cable Management and Port Density Tradeoffs
A switch with 24 ports sounds like future-proofing. In a compact 9U or 12U rack, it is often a liability. The cable bulk from 24 populated ports in a small enclosure creates pressure on neighboring units, blocks front-panel LED indicators, and makes single-cable troubleshooting genuinely difficult under load.
Right-Sizing Port Count for Compact Deployments
For most homelab deployments running 4 to 8 mini PCs plus management hardware, a 16-port managed switch is the practical optimum. It provides enough ports for dual-NIC systems, a dedicated management VLAN port, uplinks, and a spare bank without generating the cable volume that a 24-port unit creates.
Port-side placement matters as much as port count. Switches with all ports on the front face allow you to dress cables neatly along the front vertical edge of the rack. Switches with rear ports push all cable management to the back of the rack, which is useful only if you have dedicated rear cable channels, as you should in any rack deeper than 18 inches.
Patch Panel Proximity
The rule is simple: patch panel and switch should be within 1U of each other. Patch panels placed far from the associated switch generate inter-rack horizontal cable runs that serve no purpose except to create clutter. In compact rack network design, horizontal cable runs are the enemy of airflow and the enemy of clean maintenance access.
"The biggest waste in a data center or homelab rack is not power or space. It is cable length. Every unnecessary foot of copper or fiber is a maintenance event waiting to happen." - Kevin Houston, HPC infrastructure architect and contributor at Bladesmadesimple.com
Comparing Switch Placement Strategies
There are three dominant switch placement strategies used in compact rack deployments. Each has real tradeoffs, and choosing correctly depends on your rack depth, compute density, and cable management philosophy. The table below compares them directly.
| Placement Strategy | Best Use Case | Primary Tradeoff |
|---|---|---|
| Top-of-rack (ToR) placement | Racks where compute nodes all mount in the lower two-thirds, keeping the switch away from rising heat. Common in open-frame racks with good rear ventilation. | Switch operates in the highest ambient temperature zone. Requires disciplined thermal management and blanking panels below. Not recommended for fully enclosed compact racks. |
| Middle-of-rack (MoR) placement | Compact enclosed racks with mixed compute and storage. Minimizes average cable length to all nodes. Allows split patch panel arrangement above and below. | Requires careful blanking panel use above and below the switch. Slightly more complex initial cabling layout but pays dividends in every maintenance interaction thereafter. |
| Bottom-of-rack (BoR) placement | Racks where uplink and WAN equipment is at the bottom, making a direct physical connection to the ISP or upstream router cleaner. Also used when the switch needs access to a bottom-mounted UPS or PDU for PoE power distribution. | Longest average cable runs to compute nodes. Hot air from compute descends less aggressively than it rises, so thermal impact is lower than ToR placement, but cable management burden is the highest of the three options. |

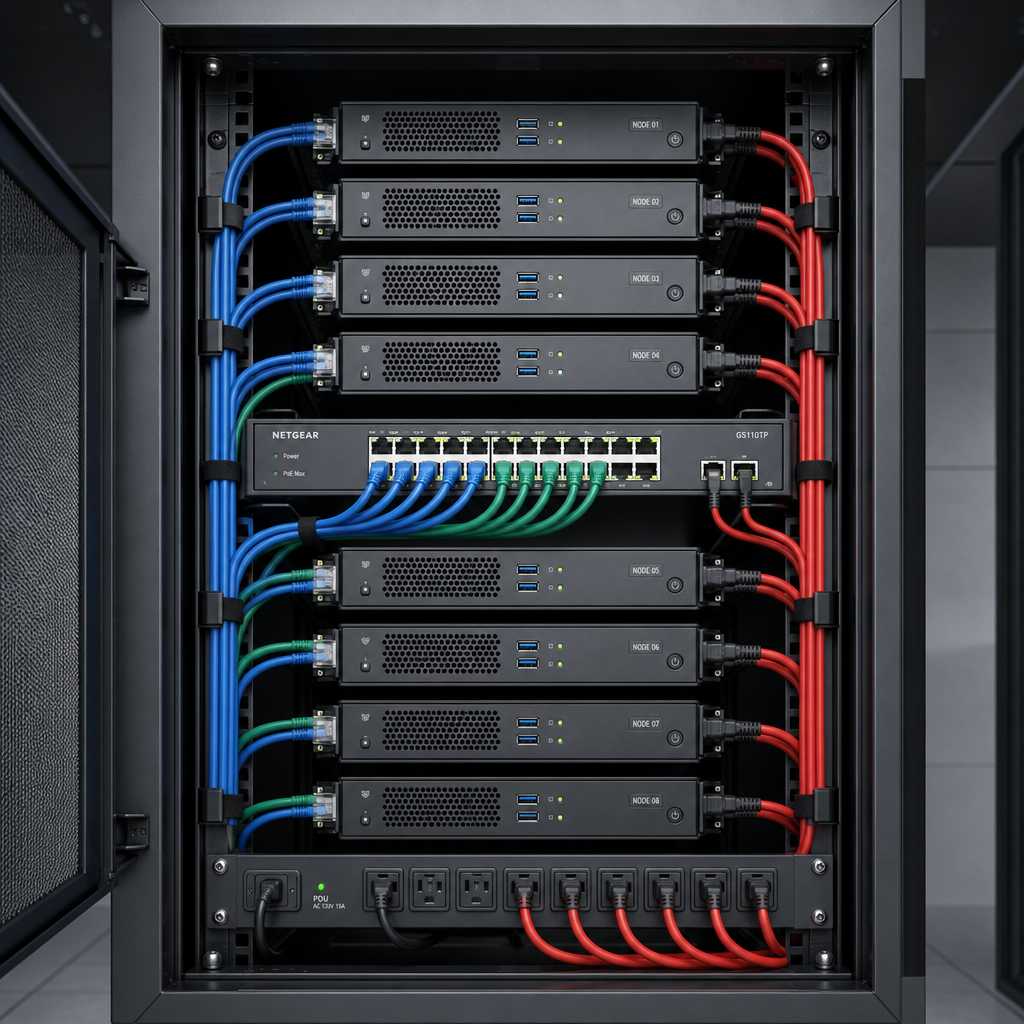

For Minisforum MS-01 and Intel NUC Pro deployments in a HiveRack-style enclosure, middle-of-rack placement is the correct default. It is not the easiest to execute initially, but it is the only strategy that scales without forcing a full recabling when you add a second compute node or a NAS unit.
Power Integration and Switch Positioning
Switch placement cannot be evaluated in isolation from power distribution. In compact racks, the power supply unit or PDU position is often dictated by form factor, and the switch must be placed in a way that keeps its power cable short and free of routing through active airflow zones.
PDU and Switch Power Routing
A rear-mounted vertical PDU is the standard in well-designed compact racks. With a vertical PDU running along the rear-right or rear-left rail, the switch power cable from any U position is under 30 centimeters. This keeps power cables out of the front cable management channel and away from patch cables entirely.
The mistake most builders make is using a horizontal 1U PDU at the bottom of the rack and then running switch power cables up the rear of the rack in an uncontrolled path. Those cables cross over exhaust ports, interfere with airflow sensors on managed PDUs, and make rear-panel access genuinely painful. Vertical PDU mounting is not just aesthetic, it is functional.
PoE Budget and Rack Thermal Budget
If your switch delivers PoE to access points, cameras, or IP phones, that power is converted to heat inside the rack. A switch with a 200W PoE budget running at 60 percent utilization is adding approximately 120W of continuous heat to your rack environment. In a sealed 9U enclosure, that heat load can raise ambient temps by 5 to 8 degrees Celsius above room temperature without active exhaust.
The solution is not to avoid PoE switches. The solution is to account for PoE thermal contribution when placing the switch and sizing your exhaust fan capacity. A switch mounted with 2U of clearance below it and active rear exhaust directly behind it can manage that heat load without impacting neighboring compute hardware.
Pro tip: When speccing a compact rack build for a Minisforum MS-01 cluster or similar density deployment, add the PoE budget of your switch to your total rack wattage calculation before sizing your PDU and UPS. Most builders forget this step and end up with a PDU or UPS that is operating closer to its rated limit than is safe for 24x7 uptime.
Homelab Networking in Mini PC Dense Racks
Mini PC rack deployments like Minisforum MS-01 clusters create a specific networking challenge that standard enterprise rack planning does not address well. These systems are physically small but network-demanding. Many run dual 2.5GbE or 10GbE NICs, meaning port count requirements scale fast relative to the physical footprint of the rack.
VLAN Segmentation in Small Deployments
A common failure mode in homelab networking is treating a flat, unmanaged network as acceptable because the deployment is small. It is not. Even a four-node Minisforum MS-01 cluster running Proxmox or ESXi benefits from VLAN separation between management traffic, storage traffic, and production VM traffic. The performance difference between segmented and unsegmented traffic on a shared 1GbE switch is measurable, and the security posture difference is significant.
Managed switches with VLAN support are the minimum requirement for any homelab build that runs virtualization or network-attached storage. The added cost over an unmanaged switch is typically 30 to 60 USD and it buys you traffic isolation, port mirroring for diagnostics, and QoS capability that matters when a single NFS or iSCSI storage burst can saturate a shared network segment.
We would love your feedback and any insights you would share with others. What perspective would you add?
SFP Uplinks and High-Density Switch Selection
For builds exceeding six nodes, the uplink path from your rack switch to your core switch or router matters as much as the access ports. A switch with dual SFP+ ports allows you to bond two 10GbE uplinks to your router, eliminating north-south bandwidth as a bottleneck when multiple nodes are generating simultaneous storage or backup traffic.
In compact rack network design, the switch selection and placement decision is inseparable. A switch with rear SFP+ ports in a shallow 12-inch deep rack creates a cable routing problem on day one. Match switch physical dimensions and port orientation to your rack depth before purchase, not after.
Frequently Asked Questions
What is the best U position for a network switch in a 9U compact rack?
Position 5U, counting from the bottom, is the optimal placement in a 9U rack for most mini PC dense builds. It places the switch at the geometric center of the rack, minimizing average cable length to all compute nodes and keeping the switch out of both the hottest top zone and the coolest bottom zone where it can interfere with power distribution equipment.
Does switch placement actually affect network performance or just physical aesthetics?
Switch placement directly affects thermal performance, which directly affects network reliability. A switch running 15 degrees above its rated operating temperature will begin experiencing increased packet error rates and ASIC throttling before it triggers any visible alarm. In practice, builders attribute this to software issues or faulty cables when the root cause is heat from poor placement in an enclosed rack.
Should I use a managed or unmanaged switch in a homelab rack?
Use a managed switch. The argument for unmanaged switches in homelabs is based on cost savings that are trivially small compared to the operational headaches of running a flat network. Any deployment using Proxmox, TrueNAS, VMware ESXi, or any virtualization platform benefits from VLAN segmentation, and you cannot do VLANs without a managed switch. The cost difference is 30 to 80 USD. Spend it.
How do I handle cable management when the switch is in the middle of the rack?
Use a 1U horizontal cable management panel directly above and below the switch. Route cables from nodes above the switch upward through the top cable manager, and cables from nodes below downward through the bottom manager. This keeps both the front face and the airflow path clean. Velcro ties, not zip ties, are the right fastener because they allow adjustment without cutting and re-dressing cables every time you add a node.
What is the minimum clearance a 1U rack switch needs above and below it for adequate airflow?
One U of clearance on each side is the practical minimum, and it must be filled with a blanking panel, not left open. An open U above or below the switch creates a recirculation path where the switch's exhaust air bypasses the rear and re-enters from the front. A blanking panel forces airflow through the intended path and measurably reduces switch operating temperature in enclosed racks.
Can I mount a PoE switch in a compact homelab rack without creating thermal problems?
Yes, but you need to account for the additional heat load in your rack thermal budget before mounting it. Calculate the expected PoE utilization as a continuous heat source, add it to your total compute wattage, and ensure your passive or active exhaust path can handle the combined load. A rear exhaust fan panel directly behind the switch helps significantly. Never mount a PoE switch in the top U position of an enclosed rack.
If you have built a compact rack and rethought your switch placement along the way, share what you changed and why in the comments. Real-world experience from this community is worth more than any spec sheet.
