Most homelab builders obsess over CPU benchmarks and network throughput but ignore the one number that determines whether their rack stays standing: rack load capacity. Overloading a rack is not just an equipment risk. It is a safety risk. A collapsed rack carrying multiple servers, UPS units, and patch panels can cause serious injury and destroy thousands of dollars in hardware in under a second. Understanding how weight ratings work, where weight actually concentrates, and how to plan your build around real physics is the difference between a professional installation and a liability waiting to happen.

Table of Contents

Quick Takeaways

Key Insight Explanation
Static load ratings are theoretical maximums, not working limits Most manufacturers rate racks under ideal lab conditions. Real-world usable capacity is typically 60-80% of the stated static maximum to maintain structural integrity over time.
Bottom-heavy loading is non-negotiable Heavy equipment like UPS units and dense servers must be mounted in the lowest rack units to keep the center of gravity below the midpoint and prevent tipping.
Rail quality directly limits effective load capacity Cheap slide rails fail long before the rack frame does. The weakest component in the load path sets the real capacity limit for any mounted device.
Floor loading matters as much as rack capacity A loaded 12U open-frame rack with a UPS can exceed 150 lbs concentrated on four small feet. Residential floors and raised floors both have weight-per-square-foot limits that must be checked.
Compact rackmount kits change the weight math significantly Mini PC server systems like the Minisforum MS-01 weigh under 5 lbs per unit but can be stacked at high density. Total rack weight accumulates faster than most builders expect.
Cable and accessory weight is routinely underestimated A fully cabled 12U rack can add 10-20 lbs in patch cables, power strips, and cable management hardware alone. Always budget for this in your load calculations.
Open-frame racks have different stability profiles than enclosed cabinets Open-frame racks rely entirely on the mounting surface and anchor points for stability. Without wall or floor anchoring, they tip at much lower off-center loads than enclosed cabinets.

What Rack Load Capacity Actually Means

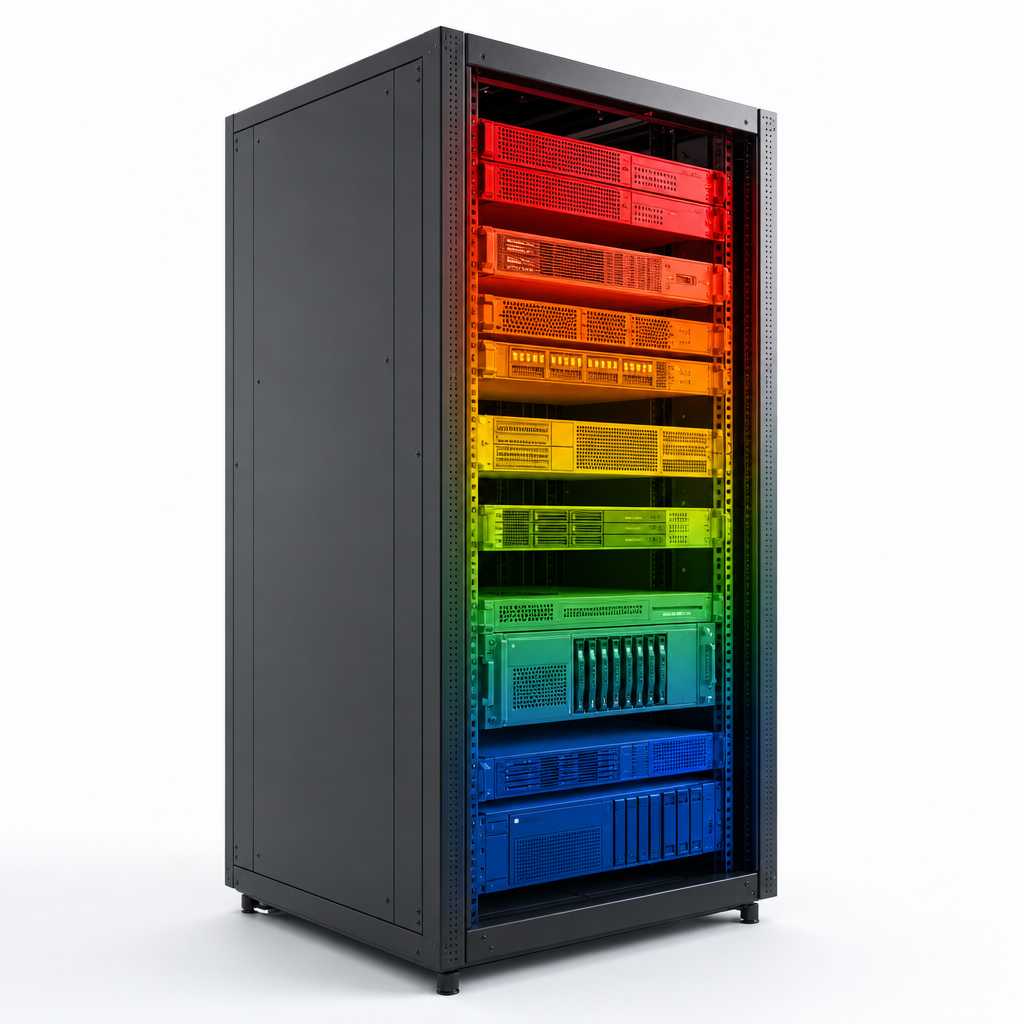

Server rack with color-coded weight distribution heat map showing safe vs unsafe load placement

When a rack manufacturer lists a 1,000 lb load capacity, that number describes the maximum weight the rack frame can support under controlled, static conditions, usually measured with the load perfectly centered and distributed evenly across all rack units. In practice, you will never achieve those conditions in a real homelab or small business deployment.

The usable working load is the number you should actually design around. Most experienced rack builders apply a safety factor of 1.5 to 2.0, meaning they keep actual installed weight at 50-67% of the stated maximum. For a rack rated at 1,000 lbs, that means planning for no more than 500-660 lbs of actual equipment.

This matters more for homelab users than enterprise data center operators, because enterprise racks are installed by structural engineers on raised floors rated for specific point loads. Your garage, basement, or home office floor was almost certainly not engineered with a rack in mind. The rack's load capacity and your floor's load capacity are two separate constraints that both need attention.

Image is being generated...

Manufacturer Ratings and What They Hide

Rack manufacturers test static load capacity by placing weight centrally on a rack that is bolted to the floor or mounted to a wall. The number they publish assumes perfect installation conditions. What they do not publish is how the rating degrades when the rack is freestanding, when load is concentrated in the top half, or when casters are used instead of leveling feet.

A common mistake is treating the rack's stated rating as additive confirmation. Just because a rack is rated for 500 lbs and your servers total 400 lbs does not mean you have a comfortable 100 lb buffer. You need to account for the load path: how weight transfers from each mounted device through the rails, through the rack frame uprights, and into the floor contact points.

Pro tip: Always request the load rating documentation from your rack or rackmount kit supplier before purchasing. If they cannot produce a spec sheet with clearly defined static, dynamic, and point-load ratings, that is a signal to look elsewhere. Suppliers like HiveRack publish this data because their customers are building real infrastructure, not display cases.

Static vs Dynamic vs Seismic Load Ratings

There are three distinct load rating categories that apply to racks, and confusing them is a reliable way to underspec your installation. Each measures a fundamentally different stress scenario.

Static Load Rating

Static load is the maximum weight the rack can support when completely motionless. This is the most commonly advertised number. It tells you nothing about what happens when you slide a server in or out, when the rack is moved, or when vibration is present. For a fixed homelab installation where nothing moves after setup, static load is your primary constraint, but it still must be derated for real-world factors.

Dynamic Load Rating

Dynamic load rating covers the weight the rack can safely handle while being moved, specifically while rolling on casters. Dynamic ratings are substantially lower than static ratings for the same rack, often 40-60% lower. If you plan to roll your rack for cleaning, repositioning, or moving between rooms, you must check the dynamic rating and ensure your loaded weight stays well within it.

For compact homelab racks carrying dense mini PC clusters, this is especially relevant. A rack holding eight Minisforum MS-01 units, a UPS, a switch, and cabling can easily reach 80-100 lbs. That is manageable dynamically for most open-frame racks. But add a traditional 2U tower server and a 1500VA UPS and you are in territory where caster ratings become a real concern.

Seismic Load Rating

Seismic ratings apply in earthquake-prone regions and are governed by standards like GR-63-CORE (NEBS) and IEC 60068-2-64. For most homelab users outside California, the Pacific Northwest, Alaska, and parts of the East Coast, seismic ratings are not a primary design constraint. That said, the anchoring practices associated with seismic compliance, specifically floor bolting and anti-tip cables, are good practice everywhere.

"The leading cause of non-seismic rack failures in small installations is top-heavy loading combined with freestanding placement on smooth flooring. The physics of tipping moments are unforgiving." - Adapted from structural engineering guidance on equipment rack installation, consistent with OSHA material handling standards.

Weight Distribution Fundamentals

Weight distribution is where most homelab builders make critical errors. The temptation is to fill the rack from top to bottom based on cable management convenience or visual preference. That approach is wrong and in some configurations genuinely dangerous.

The Center of Gravity Rule

The center of gravity of a loaded rack must stay below the geometric midpoint of the rack's height. For a 12U rack, that means the heaviest equipment should occupy rack units 1 through 4 from the bottom, with progressively lighter equipment moving upward. This is not a preference, it is basic physics. When the center of gravity rises above the midpoint, the tipping moment (the force required to knock the rack over) decreases sharply.

A UPS unit is the most common offender. UPS hardware is dense and heavy, often 20-40 lbs for a 750VA-1500VA unit. Homelab builders frequently mount it at mid-rack or high in the rack because they want their servers at eye level. This is a setup that can tip a freestanding open-frame rack with a single accidental side load.

Point Loading and Rail Stress

Point loading refers to the concentration of weight at a specific set of rack mounting points rather than distributed across the full frame. Every device you mount transfers its weight through exactly four mounting screws into the rack uprights. The uprights then carry that load to the floor.

Rail quality is the hidden variable in this equation. Slide rails in particular experience significant stress during server installation and removal. A rail rated for 50 lbs of static load may fail at 30 lbs of dynamic load when you extend it fully to pull a server out. For rackmount kits designed for compact systems like the Intel NUC Pro, the rail geometry and mounting bracket design determine the real usable load, not the rack frame's overall capacity.

Image is being generated...

Front-to-Back Weight Balance

Racks also have a front-to-back balance point. Deep servers and equipment that overhangs the rear of the rack can shift the center of gravity backward, creating tip risk toward the rear. This is particularly relevant for homelab users mounting traditional ATX equipment in compact racks that were not designed for deep chassis. Compact rackmount solutions designed specifically for mini PC systems like those offered at HiveRack keep equipment within the rack's designed depth envelope, which preserves front-to-back balance without requiring ballast.

Pro tip: Before finalizing your rack layout, draw a simple column chart assigning weight values to each rack unit. Sum the top half and the bottom half separately. If the top half total exceeds 40% of the bottom half total, you need to redesign your layout before installation, not after.

Server Rack Safety Rules That Matter

Server rack safety is not about following bureaucratic checklists. It is about preventing specific failure modes that have caused documented injuries and equipment losses. Every rule below addresses a real failure scenario.

Anchoring and Anti-Tip Measures

Any freestanding rack carrying more than 50 lbs should be anchored. For open-frame racks, this means either floor-bolting through leveling feet holes or using anti-tip straps connected to a wall stud. The cost of anti-tip straps is under $30. The cost of a toppled rack is measured in hardware damage and potential injury.

Open-frame racks are popular in homelabs because they provide excellent airflow and low cost, but they provide no structural lateral stability on their own. Every open-frame rack installation should treat anchoring as mandatory, not optional.

Never Exceed Rail Capacity During Maintenance

The most common time racks fail is during maintenance. When you extend a slide rail to pull out a server, the lever arm created by the extended chassis multiplies the effective force on the rail mounting points. A 20 lb server extended 18 inches on a slide rail creates a bending moment at the rail attachment point that can be equivalent to a 60-80 lb point load. This is why manufacturers specify both static and extended-position load ratings for rails.

For compact rackmount solutions, this is less of an issue because systems like the Minisforum MS-01 weigh under 5 lbs each. But if you are mixing compact mini PC nodes with heavier networking equipment or a NAS unit in the same rack, you need to verify the rails for each device class separately.

Floor Load Verification

Residential floors in North America are typically engineered for 40 psf (pounds per square foot) live load. A loaded rack concentrated on four 2-inch diameter feet applies its entire weight across roughly 12 square inches, which converts to an extremely high point load per square foot. A 200 lb rack on four feet applies approximately 2,400 lbs per square foot at each contact point, well above residential floor ratings.

The practical solution is to distribute the load across a larger surface area using a piece of 3/4-inch plywood or a dedicated equipment mat under the rack. This spreads the point loads and brings the effective psf back into safe territory for most residential floor assemblies.

Load Planning for Compact Homelab Racks

Compact homelab racks built around mini PC systems present a specific load planning challenge: the individual units are light, but the density potential is high and the accessories add up fast. This section works through a real planning example for the kind of build HiveRack customers are actually constructing.

Building a Weight Budget for a 12U Compact Rack

Start with a realistic hardware inventory and assign actual published weights to each component. For a 12U rack housing Minisforum MS-01 nodes with a HiveRack mounting kit, the weight per node is approximately 4-5 lbs including the rackmount bracket hardware. Eight nodes occupy roughly 8-10U depending on the mounting configuration and adds 40-50 lbs of server weight alone.

Add a managed switch (8-16 port layer 2/3 units typically weigh 3-8 lbs), a patch panel (1-3 lbs), a 750VA UPS (approximately 18-22 lbs), and power distribution hardware (2-4 lbs). The total comes to 63-85 lbs before cables, which realistically add another 5-12 lbs. A final total of 70-100 lbs is common for a well-built 12U compact homelab rack.

That weight is well within the static capacity of any quality open-frame or enclosed rack, but the distribution is what needs attention. The UPS should occupy the bottom 2U. The switch and patch panel should sit at mid-rack or lower. The server nodes can fill the remaining space above, since they are the lightest components per rack unit.

Airflow and Thermal Load Interaction

Weight distribution and airflow optimization interact in ways that matter for compact systems. The standard data center airflow model (cold air in the front, hot air exhausted from the rear or top) works best when equipment is arranged to avoid blocking airflow paths. Blanking panels in unused rack units are not just aesthetic, they prevent hot air recirculation that forces fans to work harder and drives up operating temperatures.

For compact mini PC systems, the thermal density per rack unit can be surprisingly high. Eight Minisforum MS-01 nodes at moderate load can generate 200-400W of heat in a small physical volume. Proper airflow planning requires thinking about both the rack layout and the room ventilation simultaneously. HiveRack's rackmount kits are designed with airflow channels that account for this density challenge, which is a meaningful engineering difference from generic adapter plates.

Pro tip: Use a simple online rack unit planner spreadsheet to assign both weight and thermal output (in watts) to each rack unit before purchasing any hardware. Optimizing for both constraints simultaneously is easier before the equipment arrives than after.

Comparison of Rack Load Approaches

Different rack form factors and load strategies suit different homelab scenarios. The table below compares three common approaches that homelab builders actually choose between.

Approach Best For Load and Safety Considerations
Open-Frame Rack with Compact Rackmount Kits (e.g., HiveRack for Minisforum MS-01 or Intel NUC Pro) High-density mini PC homelabs, small business deployments where airflow and density matter. Ideal where rack depth is limited. Static capacity typically 200-500 lbs. Excellent airflow. Must be anchored to prevent tip. Weight per U is low, making bottom-heavy loading easier to achieve. Rails and mounting brackets must be purpose-built for the specific device to maintain load integrity.
Enclosed 4-Post Cabinet (e.g., 12U-24U enclosed server cabinet) Mixed equipment deployments with traditional rack-mount servers, NAS units, and UPS hardware. Better dust and noise management. Static capacity typically 1,000-1,500 lbs. Built-in stability from cabinet structure. Greater total weight capacity, but the cabinet itself can weigh 80-150 lbs empty, adding significantly to floor load. Side panels restrict airflow for high-density mini PC deployments.
Wall-Mount Bracket Rack (shallow, fixed-wall mounting) Networking closets, very small deployments with patch panels, switches, and 1-2 lightweight servers. Space-constrained installations. Load capacity is constrained by wall stud spacing and fastener pull-out strength, not by the bracket itself. Typical usable capacity is 50-150 lbs depending on installation quality. Not suitable for UPS hardware or dense server clusters. Every pound must be verified against the structural wall capacity, not just the bracket rating.

Frequently Asked Questions

What is the actual usable rack load capacity I should design around?

Design around 60-70% of the manufacturer's stated static load capacity. If a rack is rated for 500 lbs static, plan for no more than 300-350 lbs of installed equipment. This 30-40% margin accounts for real-world load distribution, rail stress during maintenance, and long-term structural fatigue. For open-frame racks without wall or floor anchoring, be even more conservative.

How heavy is a typical compact homelab rack build with mini PC nodes?

A 12U open-frame rack with eight Minisforum MS-01 nodes in a dedicated rackmount kit, a managed switch, a patch panel, a 750VA UPS, and full cabling typically lands between 70 and 110 lbs total. The UPS accounts for 20-25% of that weight alone. This is well within the capacity of quality 12U racks but still requires proper bottom-heavy weight distribution and floor load consideration.

Does the type of flooring under my rack affect load safety?

Yes, significantly. Hard flooring like concrete provides broad load distribution and is ideal. Wood subfloor on joists concentrates load at each joist contact point, and a loaded rack sitting between joists can cause deflection or long-term damage. Place a sheet of 3/4-inch plywood under open-frame racks on wood floors to spread the point loads across multiple joists. Raised computer floors have their own tile weight ratings that must be checked separately.

What happens if I mix heavy traditional servers with mini PC nodes in the same compact rack?

The weakest component in the system sets the safe operating limit. If your rack uses HiveRack mounting kits rated for the MS-01 form factor alongside a 2U traditional server on generic rails, you need to verify that the traditional server rails are rated for the server's weight independently of the rack's overall capacity. The rack frame may be fine while a specific set of rails is under-rated. Always check component-level load ratings, not just rack-level ratings.

Is server rack safety a concern for a small homelab, or only for enterprise data centers?

It is absolutely a concern for small homelabs, and the risk is arguably higher because homelab installations lack the structural engineering review that enterprise deployments receive. A tipped rack in a home office, basement, or garage can cause serious injury and destroy years of equipment investment in a moment. The physics of tipping, point loading, and floor stress apply regardless of whether the rack is in a Fortune 500 data center or a home office corner.

Should I anchor my open-frame rack even if it feels stable when empty?

Yes, always anchor an open-frame rack before loading it, not after. An empty rack feels stable because its center of gravity is low and its weight is negligible. Once loaded, especially if the load is not perfectly bottom-heavy, the tipping moment changes dramatically. A loaded open-frame rack can tip from a person leaning on it, a drawer being opened forcefully, or even vibration from a closing door nearby. Anti-tip straps or floor anchors cost very little compared to the risk they eliminate.

Have you run into weight distribution problems in your own rack build? Share your setup in the comments or tag us on social media so we can see what configurations our community is running.
