Most homelab builders and small business IT teams assume that going shallow saves space and simplifies cable runs. That assumption causes real problems. Choosing the wrong rack depth specifications means squeezing servers in at an angle, blocking airflow, voiding cable management plans, and eventually buying a second rack to fix the mess. The relationship between rack depth and equipment performance is not decorative, it is engineering. This article breaks down exactly what the numbers mean, where the common mistakes happen, and how to match depth to the actual hardware you are mounting, whether that is a Minisforum MS-01, an Intel NUC Pro cluster, or a 1U edge server.
Table of Contents
- Quick Takeaways
- Why Rack Depth Is a Load-Bearing Spec
- Understanding Server Rack Dimensions
- Shallow Racks: Where They Work and Where They Fail
- Equipment Compatibility: The Real Test
- Depth vs. Airflow: The Thermal Tradeoff
- Rack Depth Comparison Table
- Frequently Asked Questions
- References
Quick Takeaways
| Key Insight | Explanation |
|---|---|
| 600mm is not a universal minimum | Many 1U and 2U servers with rear-facing PSUs require 700mm to 800mm of usable depth before factoring in cable bend radius. |
| Shallow racks under 400mm suit specific hardware only | Devices like Intel NUC Pro and Minisforum MS-01 fit shallow enclosures when mounted with purpose-built rackmount kits, not generic trays. |
| Rack depth affects airflow, not just fit | Insufficient depth compresses front-to-rear airflow channels, raising component temperatures by 5 to 15 degrees Celsius in dense configurations. |
| Rail compatibility is depth-dependent | Most sliding rails are rated for a specific depth range. Mismatching rail length to rack depth creates binding and structural stress on drive trays. |
| Cable management requires 100mm to 150mm behind equipment | A rack that fits your server by 5mm still fails if there is no rear clearance for structured cable runs and patch panel connections. |
| Power supply placement is depth-critical | Integrated PSU mounting, a feature of premium rackmount kits, only works correctly when rack depth accommodates both equipment depth and PSU overhang. |
| Standardized depth specs exist for a reason | EIA-310 and IEC 60297 define rack dimensions to ensure interoperability. Deviating from these standards creates long-term compatibility debt. |
Why Rack Depth Is a Load-Bearing Spec
Rack depth is the single most misunderstood dimension in homelab and small server room planning. Width gets attention because of the 19-inch standard. Height gets counted in rack units. Depth gets treated as an afterthought, something you check only after the rack arrives and the server does not fit.
In practice, depth governs three separate systems simultaneously: physical equipment fit, thermal airflow path length, and cable management volume. Compromise any one of these and the other two suffer. A 300mm deep rack that fits your NUC cluster perfectly still fails if there is no room for the patch panel connections at the rear.
The EIA-310-D standard specifies usable depth ranges for enclosed rack cabinets, and most enterprise equipment is designed around 600mm to 1000mm of usable internal depth. Homelab equipment often sits outside that range on the shallow end, which is exactly where purpose-engineered mounting solutions earn their value.
Pro tip: Always measure usable internal depth, not external frame depth. A cabinet marketed as 600mm deep may offer only 520mm of usable mounting space after accounting for door thickness and rear frame rails.
Understanding Server Rack Dimensions
The three axes of any rack are width, height, and depth. Width is standardized at 19 inches (482.6mm) for the mounting rail face in nearly all enterprise and prosumer environments. Height is measured in rack units, with 1U equal to 44.45mm. Depth is not standardized in the same way, and that is where the complexity begins.
Common Depth Classes and What They Actually Accommodate
Racks generally fall into four practical depth classes. Shallow wall-mount enclosures run from 150mm to 350mm and are suited to passive networking gear, patch panels, and small form-factor computers like the Intel NUC Pro when paired with a proper rackmount kit. Mid-depth cabinets from 400mm to 600mm accommodate 1U switches, small UPS units, and compact servers. Standard-depth cabinets from 600mm to 800mm cover the majority of enterprise 1U and 2U servers. Deep cabinets from 800mm to 1200mm handle blade chassis, full-depth UPS systems, and high-density storage arrays.
The Minisforum MS-01, for example, has a chassis depth of approximately 219mm. In isolation that sounds like a shallow rack is ideal. But add a rackmount kit with rear cable exit, a rear-facing network connection, and a power rail, and you are now looking at a real-world depth requirement closer to 320mm to 380mm, well outside what a 250mm wall-mount box can safely accommodate.
Rear Clearance Is Not Optional
Every piece of equipment needs rear clearance beyond its own chassis depth. Network cables have a minimum bend radius, typically 25mm to 30mm for Cat6a, and tighter bends cause signal degradation and physical damage over time. Power connectors, especially right-angle IEC C13 and C14 connectors, add another 30mm to 50mm of rearward projection. Structured cable management panels add yet more.
The data consistently shows that builds which skip rear clearance planning end up with thermal problems within six months, because cables stuffed against fan exhausts restrict airflow. Budget an absolute minimum of 100mm behind your deepest piece of equipment. For any build with more than four active devices, 150mm is the correct figure.
Shallow Racks: Where They Work and Where They Fail
Shallow racks are not bad engineering. They are correct engineering for a specific use case. The problem is that the homelab community consistently over-applies them because they look tidy in wall-mount photos posted on social media.
Where Shallow Racks Genuinely Deliver
A 300mm to 350mm wall-mount enclosure works perfectly for a pure networking layer: patch panels, a managed switch, a small firewall appliance, and a PoE injector. These devices are inherently shallow, generate moderate heat, and have manageable cable runs. A 9U or 12U shallow wall enclosure housing a pfSense box and a 24-port patch panel is a clean, functional installation.
Small form-factor compute clusters using dedicated rackmount kits also work in shallow enclosures when the kit is designed specifically for the hardware. A precision-engineered mount for the MS-01 or NUC Pro accounts for connector clearance, airflow direction, and power routing in its geometry. Generic shelf trays do not, which is why the same hardware that works in a proper kit causes problems on a $15 tray in a shallow cabinet.
Where Shallow Racks Create Compounding Problems
A common mistake is purchasing a shallow rack for a mixed compute and storage build. Adding even one NAS device or a GPU-equipped 1U server immediately exceeds the depth budget. The result is a combination of diagonal equipment mounting, rear door that cannot close, and cables routed outside the enclosure, which defeats the entire purpose of a rack.
Shallow racks also fail when power distribution is centralized. A quality PDU with individual outlet switching adds 60mm to 90mm of depth projection at the rear. In a 350mm cabinet, that leaves under 260mm for the equipment itself, which eliminates most meaningful server options.
Pro tip: If you are building a homelab that you expect to expand over 18 to 24 months, start with a 600mm usable depth cabinet even if your current hardware only needs 400mm. The cost difference at purchase is always smaller than the cost of replacing a rack mid-build.
Equipment Compatibility: The Real Test
Equipment compatibility in the context of rack depth is not just about whether a device physically slides in. It is about whether the device operates correctly, safely, and accessibly once installed.
There are three compatibility tests that matter. The first is fit: does the equipment chassis depth plus cable clearance plus rail depth fall within the usable rack depth? The second is thermal: does the rack depth allow front-to-rear airflow to move across the full length of the equipment without obstruction? The third is serviceability: can you physically reach connectors, pull drives, and reseat cables without removing other equipment?
"The most expensive component in any server room is not the hardware, it is the engineer-hours spent fixing a layout that was never designed properly." - 451 Research infrastructure planning guidance, referenced in Uptime Institute commentary on data center design efficiency.
Rail Length and Rack Depth Must Match Precisely
Sliding rails are manufactured for specific depth ranges, often in 50mm increments. A rail set rated for 650mm to 900mm depth will bind, flex, or fail if installed in a 500mm cabinet. This is not a marginal issue. Binding rails under load, particularly with 2U servers exceeding 15kg, create real risk of equipment damage and physical injury during maintenance.
Purpose-built rackmount kits for compact systems like the MS-01 solve this specifically by designing the mount geometry around the actual rail-to-equipment relationship rather than assuming enterprise rail standards apply. That engineering detail is what separates a proper kit from a generic mounting shelf.
Connector Access After Installation
A server rack that requires partial disassembly to access a USB port or swap a drive is a liability in a production environment, even a homelab production environment running self-hosted services. Depth specification directly affects whether there is physical room to operate connectors at the rear of equipment without removing adjacent units from the rack.
In practice, rear-facing connectors need at least 80mm of clearance behind the connector face for comfortable operation. For front-facing connections, the door clearance, typically 50mm to 100mm in a standard cabinet, governs accessibility. Both calculations depend on accurate rack depth specifications from the start.
Depth vs. Airflow: The Thermal Tradeoff
Airflow management is the area where rack depth specifications have the most direct impact on hardware longevity and performance. The front-to-rear airflow model that virtually all server equipment uses requires an unobstructed path from intake to exhaust. Rack depth controls the length of that path.
Too little depth and equipment fans are essentially pulling air through a restriction. The static pressure demand on the fan increases, noise levels rise, and the fan motor runs harder and fails sooner. In dense configurations with four or more active compute nodes, intake restriction caused by insufficient rear cable clearance can raise component temperatures by 8 to 15 degrees Celsius, directly shortening SSD and RAM lifespan.
Cold Aisle and Hot Aisle Principles Apply Even at Homelab Scale
Enterprise data centers use cold aisle and hot aisle containment to separate intake and exhaust air. At homelab scale, the equivalent is ensuring that equipment intakes and exhausts do not face each other within the same rack enclosure. This requires enough rack depth to position equipment with consistent front-to-rear orientation.
Mixing equipment with different airflow directions in a shallow rack is one of the fastest ways to create a thermal failure. A switch exhausting through its sides positioned above a server exhausting through its rear creates a recirculation zone. The server pulls pre-heated air from the switch exhaust back through its own intake. Temperatures climb, throttling kicks in, and performance degrades.
Airflow Optimization in Compact Rackmount Builds
Premium rackmount kits engineered for small form-factor systems like the NUC Pro address this by designing mount orientation and spacing to maintain airflow separation even in shallow enclosures. Blanking panels between mounted units are essential in any rack regardless of depth, but they are especially critical in compact builds where a single empty 1U gap represents a significant percentage of total cabinet height.
The general guidance from thermal engineering practice is to maintain a minimum 50mm gap between an equipment exhaust face and any rear obstruction, whether that is a door, a cable bundle, or an adjacent device. In a 400mm usable depth cabinet with equipment that is 350mm deep, that 50mm is your entire thermal margin. It leaves nothing for cable runs.

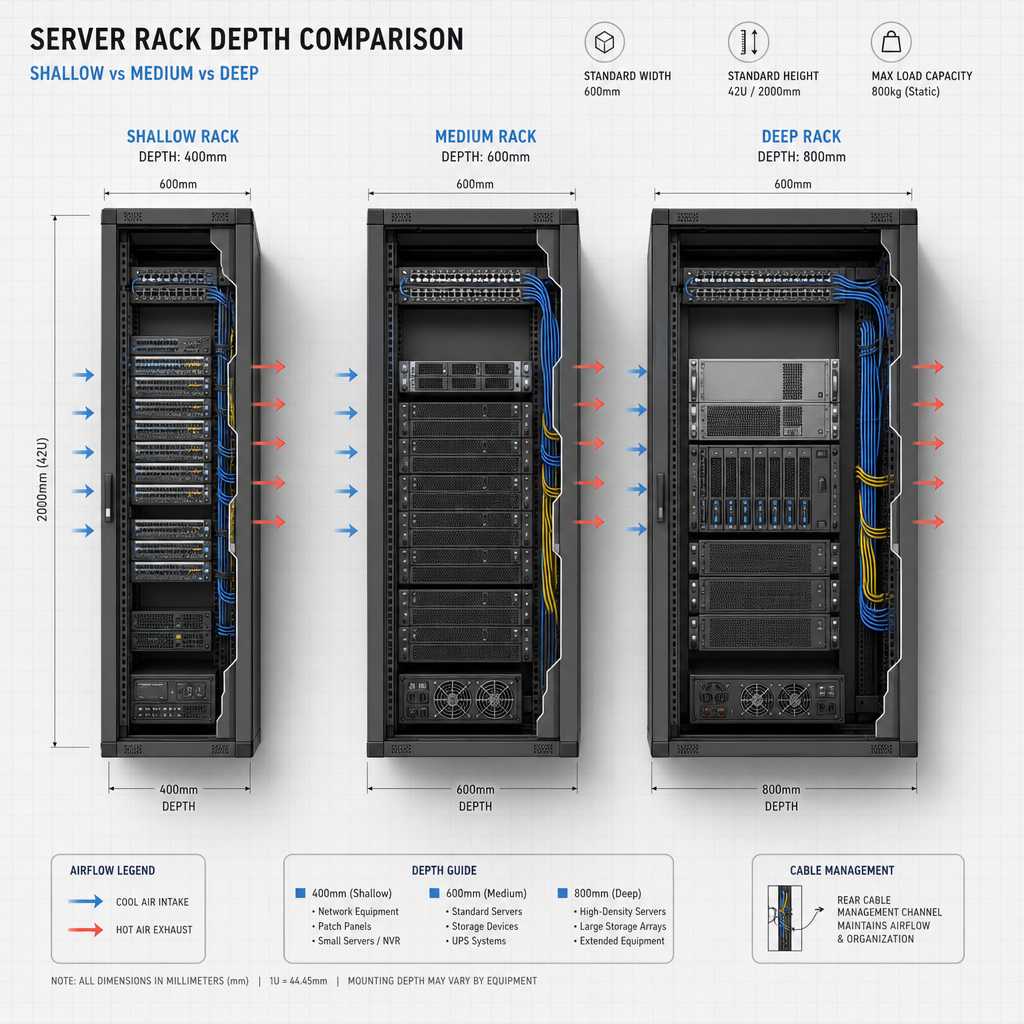

Rack Depth Comparison Table
The following comparison covers three practical rack depth configurations commonly used by homelab builders and small business IT teams. These are not hypothetical scenarios, they represent real deployment patterns with known tradeoffs.
| Configuration | Best Use Case | Key Limitations |
|---|---|---|
| Shallow Wall-Mount (150mm to 350mm usable depth) | Pure networking layer: patch panels, managed switches, small firewall appliances, NUC Pro or MS-01 clusters with purpose-built rackmount kits | No room for standard PSU mounting, cable management severely restricted, cannot accommodate sliding rails for servers above 2kg, thermal margin near zero in dense compute builds |
| Mid-Depth Cabinet (400mm to 600mm usable depth) | Mixed networking and compact compute: homelab with SFF servers, a NAS unit, PoE switch, and small UPS; small business edge deployments | Still too shallow for full-depth enterprise servers or blade chassis, rear cable management requires careful planning, some rail sets will not fit without modification |
| Standard-Depth Cabinet (600mm to 800mm usable depth) | Full homelab and small business server builds: 1U and 2U servers, GPU nodes, storage arrays, centralized PDU, integrated power supply mounting, full cable management | Larger physical footprint, higher cost, may be overspecified for pure networking or passive equipment needs, requires floor or wall anchor points for stability |
The mid-depth configuration at 500mm to 550mm usable depth is where most homelab builders find the practical sweet spot for mixed compute and networking builds. It accommodates purpose-built rackmount kits for compact systems, allows proper cable management, and supports integrated power supply mounting without requiring a full enterprise-depth footprint.
Frequently Asked Questions
What are the standard rack depth specifications for a home server rack?
There is no single mandatory standard for depth the way there is for the 19-inch width specification. In practice, homelab racks range from 300mm shallow wall-mounts to 800mm floor-standing cabinets. The most practical depth for a mixed compute and networking homelab is 500mm to 600mm of usable internal depth, which accommodates compact servers, proper cable management, and integrated PDU mounting without requiring an enterprise-footprint cabinet.
Can I use a 300mm shallow rack for a Minisforum MS-01 or Intel NUC Pro?
Yes, but only with a rackmount kit specifically engineered for those devices. A purpose-built kit accounts for connector clearance, cable exit routing, and power connection geometry. A generic shelf tray in a 300mm cabinet will leave cables compressed against the rear door and restrict airflow from the equipment's exhaust. The kit geometry is doing real engineering work that the tray is not.
How does rack depth affect server rack dimensions and equipment compatibility?
Rack depth determines whether equipment physically fits, whether rails can extend and retract correctly, whether rear connectors are accessible, and whether there is sufficient clearance for cable bend radius and airflow. Equipment compatibility is not just a matter of chassis length. It includes the full operational envelope of the device once installed, powered, and cabled.
What is the minimum rear clearance I should plan for behind rack-mounted equipment?
Plan for a minimum of 100mm of clearance behind the rear connector face of your deepest piece of equipment. For any build with structured cable management, patch panels, or more than four active devices, 150mm is the correct minimum. This clearance accommodates Cat6a bend radius, IEC power connector projection, and enough physical access to operate rear-facing ports without tools.
Why do some rackmount kits specify a minimum rack depth even for shallow hardware?
Because the kit itself adds depth through its mounting geometry, cable routing channels, and rear rail attachment points. A rackmount kit for the MS-01 may add 60mm to 80mm of effective depth beyond the bare chassis dimension. The kit manufacturer specifies a minimum rack depth to ensure that this combined dimension, plus cable clearance, fits within the target enclosure without compression or airflow restriction.
Does rack depth matter for passive networking equipment like patch panels?
Less so for the equipment itself, but yes for the cable management behind it. Patch panels are typically 30mm to 50mm deep, well within any enclosure. The real depth requirement comes from the structured cabling behind the panel. Each cable needs a bend radius of at least 25mm, and a 24-port panel with fully dressed cables requires 100mm to 130mm of rear clearance to maintain signal integrity and allow individual cable removal without disturbing adjacent runs.
Is a deeper rack always better for airflow?
No. Excess depth beyond what equipment and cable management require creates dead air zones at the rear of the cabinet. These zones trap warm exhaust air and reduce the temperature differential that drives passive convection. The correct approach is to size rack depth to equipment depth plus 150mm of rear clearance, then use blanking panels and airflow baffles to eliminate unused gaps. More depth than that adds cost and floor space without thermal benefit.
What depth specification have you found works best for your specific homelab or small business server build? Share your setup details in the comments and let us know what tradeoffs you ran into.
