Rack Cable Management Blueprint for Mini PC Homelabs

Rack Cable Management Blueprint for Mini PC Homelabs

Messy wiring inside a high-density mini PC rack does not just look bad. It blocks airflow, creates heat traps, and turns a five-minute swap into a forty-minute debugging session. Rack cable management is the difference between a homelab that scales gracefully and one that collapses under its own weight every time you add a device. For compact systems like the Minisforum MS-01 or Intel NUC Pro, where U-space is measured in millimeters and airflow margins are razor-thin, wiring discipline is not optional. This blueprint covers every layer of the problem, from planning routes before you pull a single cable to locking down the final velcro tie.

Table of Contents

Quick Takeaways

Key Insight Explanation
Route power and data separately Running AC power cables alongside Ethernet or USB data lines creates electromagnetic interference. Keep them on opposite sides of the rack chassis whenever the layout allows.
Cut cable length to fit, not to spare Excess cable length is the number one cause of blocked airflow in compact racks. Use pre-measured or custom-cut cables rather than looping and bundling the surplus.
Velcro over zip ties for homelab builds Velcro straps allow quick reconfiguration without cutting. In a homelab that changes monthly, zip ties become a liability rather than a solution.
Label both ends of every cable before installing A label on only one end means you pull the cable to read it. Label both ends during the build, not after, when access is already restricted.
Use a 1U cable manager for every 4U of devices A rough ratio that keeps horizontal cable managers from overloading. Overloaded cable managers become obstructions rather than organizational tools.
Plan for PDU placement first The PDU position dictates every power cable route in the rack. Choosing a side-mount or rear-mount PDU early eliminates the most common source of cable chaos in mini PC builds.
Document changes in real time A rack diagram updated once a quarter is already wrong. Update the diagram the same day any cable changes, or the documentation becomes useless within six months.

Why Cable Management Matters in Mini PC Racks

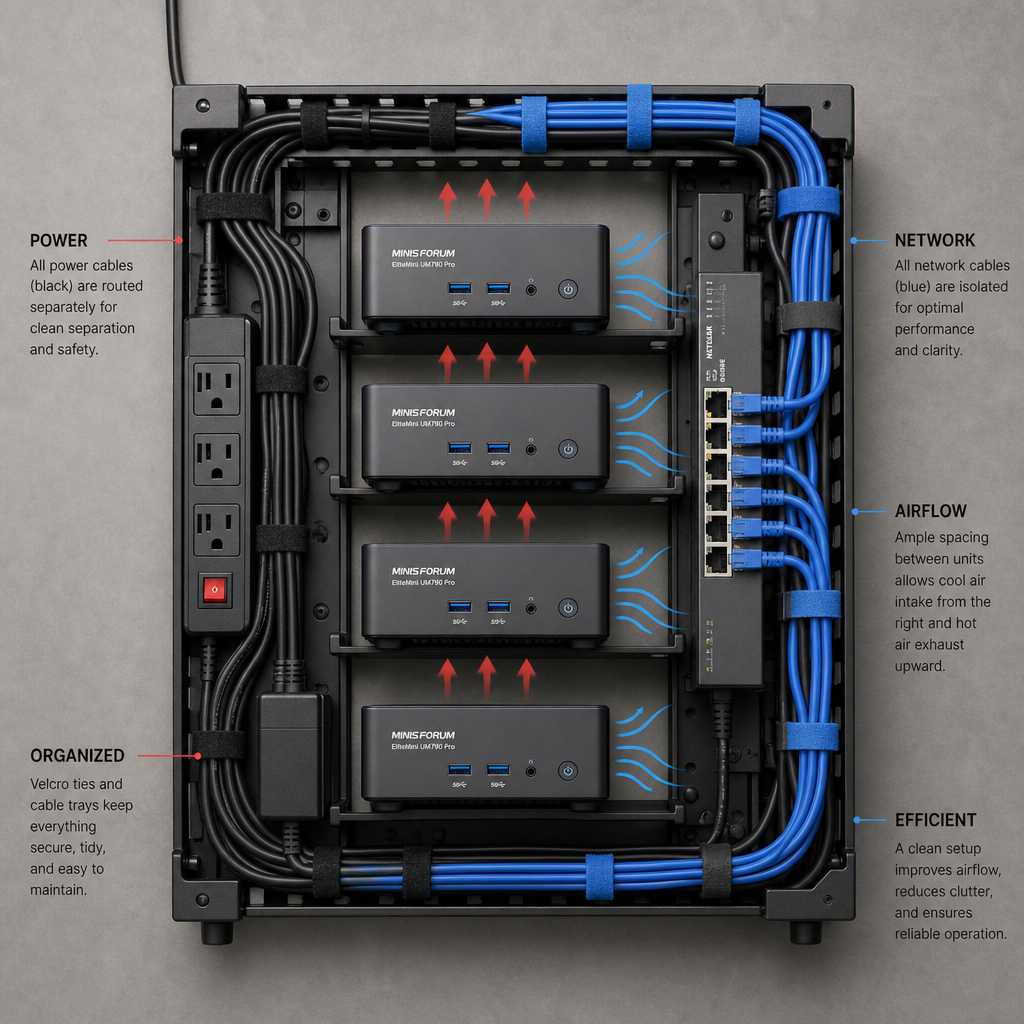

Organized mini PC rack with color-coded cable management and separated power and data routing

Mini PC systems are dense by design. A single 4U rackmount kit from HiveRack can hold multiple Minisforum MS-01 nodes, a small managed switch, and an integrated PDU mount, all within a footprint that would fit on a bookshelf. That density is the entire point. But it also means that every cable you add competes directly with airflow, physical access, and visual clarity.

In practice, poor rack cable management in compact builds causes three measurable problems. First, ambient temperatures inside the chassis rise because bundled cables obstruct intake and exhaust paths. Second, troubleshooting time increases sharply because you cannot trace a fault without disturbing neighboring devices. Third, upgrade cycles become unnecessarily destructive, where adding one new node forces you to dismantle half the rack to route the new power and data cables.

The homelab community tends to treat cable management as aesthetic. It is not. It is a functional discipline with direct impact on hardware longevity, fault detection speed, and the ease of scaling your infrastructure. Anyone who has re-cabled a dense NUC rack from scratch because an earlier build was "good enough" knows exactly how expensive that shortcut turns out to be.

Image is being generated...

Planning Your Cable Routes Before You Build

The single most effective thing you can do for homelab wiring is draw the cable routes before the first device goes into the rack. This is not about perfection. It is about avoiding the three most common layout mistakes that require a full teardown to fix.

Map Device Positions and Port Locations First

Place every device in its intended rack position on paper or in a simple rack diagram tool like Netbox before touching a cable. Note where each device's power input, network ports, and USB ports face. Mini PC systems like the Minisforum MS-01 have rear-facing ports on one end and front-facing USB on the other. If your power brick or PDU tap is on the wrong side, every power cable crosses the full depth of the rack and blocks everything behind it.

A common mistake is mounting all devices first and then figuring out cable routing. By that point, you have already committed to a layout that may force cables across airflow paths. Reversing it costs time and frustration.

Establish Dedicated Zones for Power and Data

Assign the left vertical channel to power cables and the right to network and data cables, or vice versa. Pick a convention and hold it. The physical separation is not just about electromagnetic interference, though that matters. It is about making it possible to trace any cable by type without reading every label first.

Pro tip: Use color-coded cables from the start. Blue for management network, yellow for production LAN, red for power distribution taps. Color coding takes two minutes to implement and saves ten minutes every time you troubleshoot under pressure.

Essential Tools and Hardware

You do not need a large toolkit, but you do need the right one. Substituting or improvising on cable management hardware in a compact rack creates problems that compound over time.

What You Actually Need

For most mini PC rack builds, the core kit is: velcro cable ties in at least two widths (narrow for individual cables, wide for bundled runs), a label maker with heat-shrink or self-laminating labels that resist peeling, short-run patch cables in 0.3m and 0.5m lengths, and a horizontal cable manager rated for 1U that has both top and bottom routing fingers, not just one row.

Cable managers with only a single row of fingers force you to stack cables vertically, which creates exactly the airflow obstruction you are trying to prevent. In practice, dual-row managers keep runs separated and allow individual cables to be pulled or replaced without disturbing the bundle.

Side-mount cable channels are worth adding to any rack that holds more than four devices. They keep the vertical runs off the front face of the rack and out of the airflow path entirely. HiveRack's rackmount kits are designed with this kind of integrated organization in mind, which means you spend less time retrofitting hardware that should have been there from the start.

Pro tip: Buy 20 percent more patch cables in each length than you think you need before the build starts. Mid-build trips to the store to find a 0.5m Cat6 cable are a predictable and avoidable time sink.

Power Cable Routing for High-Density Builds

Power cable routing in a mini PC rack is fundamentally different from a traditional 1U server rack. You are not dealing with IEC C13 and C14 connections throughout. You are dealing with a mix of DC barrel connectors, USB-C PD cables, and compact power bricks that were designed for desktop use, not rack deployment.

PDU Position Drives Everything

Choose between a rear-mount and a side-mount PDU before mounting anything else. A rear-mount PDU routes all power tails toward the back of the rack, which keeps the front face clear and accessible. A side-mount PDU shortens cable runs significantly in shallow racks under 300mm deep, which is common in homelab builds using compact chassis.

For Minisforum MS-01 deployments specifically, the power input is on the rear of the unit. A rear-mount PDU with short-cut DC cables produces the cleanest result. Longer cables routed from the front or side end up looping back on themselves and occupying space that airflow needs.

Eliminating Power Brick Bulk

Power bricks are the biggest cable management problem in mini PC racks. A single MS-01 power adapter is large enough to block an entire 1U slot if it is not mounted correctly. HiveRack builds integrated PSU mounting into their kit designs specifically to address this. Mounting the brick against the rack panel rather than letting it hang from its cable removes it from the airflow path and prevents the mechanical strain on the barrel connector that causes premature failures.

If integrated mounting is not available, use hook-and-loop fastener strips on the side wall of the chassis to secure bricks vertically. This is not elegant, but it removes them from the floor of the rack where they obstruct everything below.

Image is being generated...

Network and Data Cable Organization

Network cables in a high-density mini PC rack are usually the highest-volume cable type. A four-node build with an upstream switch already means a minimum of four Ethernet runs, plus management cables, USB connections for out-of-band access, and potentially SFP fiber if you are running 10GbE between nodes.

Patch Length Selection is a Precision Decision

In compact racks, the difference between a 0.3m and a 0.5m patch cable is the difference between a clean run and a loop you have to tuck somewhere. Measure each run individually before ordering cables. A route from the top of a 4U node cluster to the switch at the bottom is different from a same-unit connection. Do not buy all one length and route around the excess.

A common mistake is ordering all 1m patch cables because they seem flexible. In a rack with 250mm between the switch ports and the nearest device, a 1m cable has 750mm of slack that has to go somewhere. That somewhere is usually in front of a fan intake.

Switch Placement and Port Orientation

Mount the switch at the top of the node cluster, not at the bottom. This creates downward cable drops from the switch to each device, which are shorter, easier to dress, and easier to replace. Bottom-mounted switches force cables to travel up past every device before connecting, which multiplies the length and complexity of every run.

"The best cable run is the shortest one that follows a straight line to its destination. Every bend, loop, or detour is a future troubleshooting problem waiting to happen." - Network infrastructure principle cited in structured cabling standards from BICSI, the Building Industry Consulting Service International.

Airflow and Thermal Impact of Cable Placement

In a mini PC rack, thermal management and cable management are the same problem viewed from different angles. You cannot solve one without addressing the other.

The Minisforum MS-01 uses an internal fan that draws air from the bottom and exhausts from the rear. A bundle of cables sitting directly beneath the unit restricts that intake. The result is not immediate failure. It is a 5-8 degree Celsius rise in CPU operating temperature that accumulates over months of operation and shortens component life. The data consistently shows that every 10 degrees Celsius of sustained excess temperature halves the operating life of NAND flash storage, which is relevant for mini PC nodes running NVMe drives.

The Front-to-Back Airflow Rule

Keep cables out of the front-to-back airflow corridor entirely. This means routing cables vertically along the side channels rather than horizontally across the face of the devices. It means securing bundled runs against the side walls rather than letting them float in the open space behind the devices. And it means keeping the rear panel area behind exhaust ports clear of any cable obstruction.

HiveRack's rackmount kit designs enforce this separation structurally, with channels and mount points that direct cables to the sides rather than through the thermal zone. This is one of the practical advantages of a kit engineered for mini PC density rather than adapted from a generic rack design.

Cable Management Approaches Compared

There are three realistic approaches to rack cable management for homelab builders. Each has different cost, effort, and outcome profiles.

Approach Best For Limitations
Pre-planned custom-length cables with structured channels Permanent or semi-permanent builds where device positions are fixed. Produces the cleanest result and best airflow. Typical of engineered rack kits like HiveRack deployments. Requires accurate planning before purchase. Reconfiguring the layout later may require new cables. Higher upfront time investment.
Standard-length cables with horizontal cable managers Builds that change frequently, where flexibility matters more than aesthetics. Lower planning overhead at the start. Excess cable length creates airflow obstructions. Cable managers can become overloaded in high-density configurations. Results look and perform worse than custom-length approaches.
Ad hoc bundling with zip ties and tape Temporary builds, proof-of-concept setups, or hardware that will be rearranged within weeks. Minimal cost and effort. Zip ties must be cut to reconfigure, which damages cable jackets over time. No protection for airflow paths. Becomes a liability in any build that runs for more than a few months.

The data consistently shows that homelab builders who start with ad hoc cabling and plan to "clean it up later" almost never do. The structured approach costs more time upfront and pays back that investment on the first reconfiguration.

Labeling, Documentation, and Long-Term Maintenance

A clean cable installation degrades without a maintenance discipline behind it. The most common failure mode is not the initial build. It is the second and third modifications that happen without updating the documentation or re-dressing the cables that were disturbed.

Label Standards That Actually Hold Up

Use self-laminating labels for network cables and heat-shrink labels for power cables. Printed labels from a label maker last significantly longer than hand-written ones, particularly in environments with any humidity or temperature cycling. The label text format should be consistent: source port first, destination port second. For example: "SW1-P3 to MS01-NIC1" on both ends of the cable.

Avoid labels on cable jackets in tight bends. The adhesive fails faster at bend points. Place the label on a straight section within 50mm of the connector head where you can read it without moving the cable.

Rack Diagrams and Change Logs

A rack diagram does not need to be elaborate. A free tool like draw.io or a printed grid template works. What matters is accuracy. Every device position, every cable connection, and every port assignment should be recorded. When you change something, update the diagram that day, not that week.

A change log with dates, what was added or removed, and why is more valuable than the diagram alone. Six months after a build, you will not remember why a particular cable runs where it does. The log tells you, and it saves a full diagnostic pass every time something unexpected appears.

Frequently Asked Questions

What is the right cable length for a mini PC rack build?

Measure the actual routed path of each cable before ordering. For most mini PC rack builds with devices clustered in a 4U to 6U footprint, patch cables between 0.3m and 0.5m cover the majority of same-cluster connections. Cross-rack runs may need 1m. Never estimate. Measure twice and order once. Excess length in a compact rack is not just untidy, it directly obstructs airflow and access.

Should I use velcro ties or zip ties for homelab wiring?

Velcro ties for any homelab that changes more than once a year. Zip ties are faster to install but must be cut to remove, which means you will nick cable jackets eventually, and you will end up with loose cable segments scattered in the rack after every modification. Velcro costs marginally more and produces a cleaner, more maintainable result in almost every compact rack scenario.

How do I handle power bricks inside a rackmount kit for mini PCs?

Mount them. Do not let them rest on the floor of the rack or hang from their cables. Integrated PSU mounting brackets, like those built into HiveRack's kit designs, are the cleanest solution. If your current kit does not have them, use hook-and-loop fastener strips to secure bricks vertically against the interior side walls. This removes them from the airflow path and eliminates mechanical stress on the barrel connector, which is the most common power failure point in mini PC rack deployments.

Does cable placement actually affect CPU temperature in mini PC builds?

Yes, measurably. Mini PC systems like the Minisforum MS-01 have restricted intake paths. A bundle of cables sitting beneath or directly in front of the fan intake reduces airflow volume and raises operating temperature by 5 to 10 degrees Celsius under sustained load. Over months of operation, this translates to accelerated component wear, particularly on NVMe drives and capacitors. Clean cable routing is a thermal management practice, not just a cosmetic one.

What is the best way to document a homelab rack cable setup?

A rack diagram plus a change log is the minimum viable documentation set. Use draw.io for the diagram, which is free and handles rack layouts well. Record every device position, port assignment, and cable connection. The change log should note the date, what changed, and why. Update both documents the same day any change is made. Documentation that lags behind the physical build by more than a week is already unreliable.

How often should I audit and re-dress cables in a homelab rack?

Every time you add or remove a device, audit the cables in the affected zone. For a stable build with no changes, a full cable audit every six months is reasonable. Look for cables that have shifted out of their channels, velcro ties that have loosened, labels that have peeled, and any new obstructions in front of intake or exhaust paths. Preventive maintenance on cable routing is significantly faster than reactive debugging after a thermal event.
