Running three or more Intel NUC Pro nodes in a single rack and still wrestling with a tangle of individual power bricks is not an infrastructure problem. It is a design problem. Most homelab builders underestimate how badly unmanaged power supply placement degrades airflow, increases cable clutter, and limits future node expansion. NUC Pro PSU mounting done correctly is the difference between a rack that scales and one that stalls at four nodes. This infographic-style breakdown gives you every integration option, ranked by practicality, cost, and thermal impact, so you can stop guessing and start building.
Table of Contents
- Quick Takeaways
- Why PSU Integration Matters in Multi-Node NUC Pro Deployments
- The Four PSU Integration Options, Mapped Out
- Rackmount Power Supply Deep Dive: What the Specs Actually Mean
- Integration Option Comparison Table
- Homelab PSU Integration Mistakes That Kill Thermal Performance
- Intel NUC Power Management at Scale: What Changes Above Four Nodes
- How HiveRack Mounting Systems Address These PSU Challenges
- Frequently Asked Questions
- References
Quick Takeaways
| Key Insight | Explanation |
|---|---|
| Shared rail PSUs outperform individual bricks at 4+ nodes | A single 1U rackmount PSU delivering 400W-600W to multiple NUC Pros reduces cable count by up to 70% and eliminates per-node wall wart clutter. |
| PSU placement directly affects node thermals | Mounting a PSU in the airflow exhaust path of NUC Pro nodes raises ambient intake temperature by 4-8 degrees Celsius, measurably increasing sustained CPU throttling risk. |
| DC distribution blocks are underused in homelabs | A centralized 12V or 19V DC bus with individual fused outputs per node is the most scalable architecture, and most homelab builders skip it entirely. |
| Not all rackmount PSUs output clean DC for NUC Pro | The Intel NUC Pro requires 19V DC input. Many generic 1U server PSUs output 12V only, requiring a DC-DC boost stage that adds cost and potential noise. |
| Standby power draw adds up fast in dense deployments | Each NUC Pro draws roughly 6-8W at idle. A six-node cluster idles near 48W. PSU efficiency at low load matters: choose units rated at 80 Plus Gold or higher. |
| Integrated PSU mounting improves rack serviceability | When PSU mounting is built into the rack kit design, node hot-swap and maintenance time drops significantly compared to ad-hoc brick-and-zip-tie setups. |
| UPS compatibility depends on PSU form factor choice | External power bricks connected to a UPS require the UPS to handle surge loads from all nodes simultaneously. A single rackmount PSU with clean load regulation is far easier for a UPS to manage. |
Why PSU Integration Matters in Multi-Node NUC Pro Deployments
Every NUC Pro deployment starts simple: one node, one power adapter, done. The problem appears when you add node two, then three, then four. Suddenly you have a shelf of wall warts, a power strip that is more tape than plastic, and cables routed in ways that would make any network engineer leave the room. This is not a cosmetic issue.
Unmanaged power supply placement actively degrades performance. Airflow is the first casualty. Power bricks generate heat, and if they sit downstream of node exhaust, that warm air cycles back into your intake. In a 4U enclosure with six NUC Pro nodes, unmanaged PSU heat can raise ambient temperatures enough to trigger Intel's power limits on sustained workloads.
The second casualty is reliability. Consumer power adapters are not rated for continuous 24/7 operation at full load. A NUC Pro running Proxmox VE with active VMs will pull near its maximum TDP for extended periods. Running a consumer 90W adapter at 85W continuously is a warranty violation and a thermal event waiting to happen.
Pro tip: Before selecting any PSU integration approach, calculate your peak cluster wattage at 80% TDP per node, not idle. For a six-node NUC Pro cluster, that means sizing for roughly 360W peak draw minimum, not the 48W idle figure that looks tempting on paper.
The Four PSU Integration Options, Mapped Out
There are exactly four architecturally distinct ways to handle PSU integration in a multi-node NUC Pro rack. Every approach you see in forums or product listings is a variation of one of these four. Understanding the differences at this level makes every downstream decision, including rack kit selection, easier.
Option 1: Individual Power Adapters with Managed Cable Routing
This is the default for most homelab builders and the worst option at scale. Each NUC Pro gets its own 90W or 120W adapter, typically a brick-style unit. The adapters plug into a rack-mounted power strip or PDU. The approach works for one or two nodes. At four nodes it becomes unmanageable. At six it is a fire risk if you are using unrated power strips.
The one legitimate use case for this approach is temporary deployments or proof-of-concept clusters where budget is the hard constraint. Do not plan a permanent homelab around it.

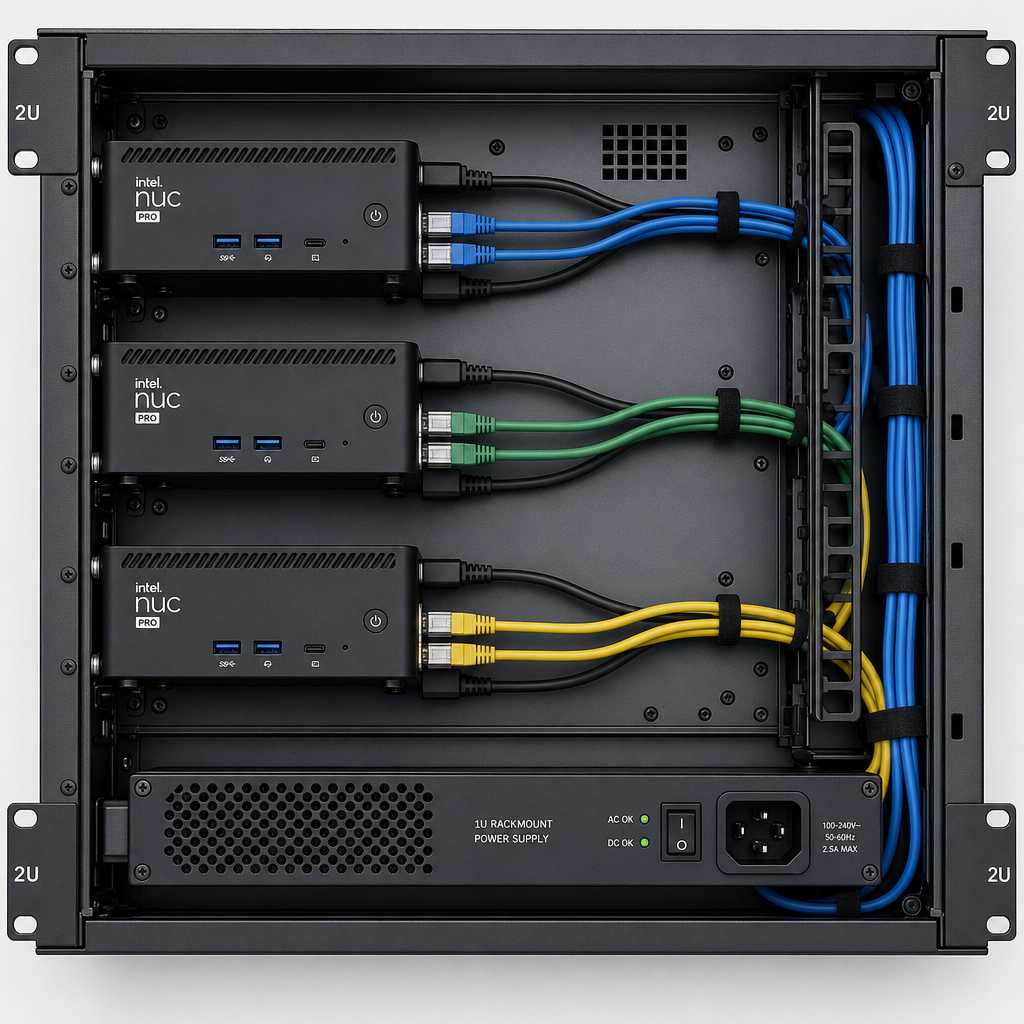

Option 2: Shared 1U Rackmount PSU with DC Distribution
A single rackmount PSU, typically 1U form factor, outputs a DC bus voltage. A distribution block or custom wiring harness splits that output to individual node connections. This approach is what HiveRack's integrated mounting philosophy is built around. It is cleanest at four to eight nodes and scales predictably.
The key constraint is voltage matching. NUC Pro units require 19V DC input. Most commercial 1U server PSUs output 12V. You either need a PSU that natively outputs 19V or you add a DC-DC boost converter per node. The boost converter adds cost and a small efficiency loss, typically 3-5%, but it is manageable.
Option 3: Dual PSU Redundant Rails with Automatic Failover
For homelabs or small business deployments where uptime is a real requirement, dual PSU configurations with automatic failover are the correct answer. Two 1U rackmount PSUs share the load across all nodes. If one fails, the other carries the full cluster. This mirrors enterprise server design principles and is overkill for a dev lab, but appropriate for anything running production workloads or client-facing services.
Pro tip: If you run dual PSUs, source units from different manufacturing batches when possible. Power supplies from the same batch often fail at similar intervals due to component aging, defeating the purpose of redundancy.
Option 4: Open-Frame ATX PSU Mounted to Rack Panel
Some homelab builders use a standard ATX PSU mounted to a 2U blank panel with a custom bracket. The ATX PSU outputs 12V on its main rails. DC-DC converters step up to 19V per node. This is the most flexible option for builders comfortable with custom wiring, and it is the cheapest path to a centralized PSU. It is also the most likely to create problems if the builder underestimates the electrical engineering requirements.
Rackmount Power Supply Deep Dive: What the Specs Actually Mean
When you look at a rackmount power supply spec sheet, three numbers matter most for NUC Pro deployments: total wattage, efficiency rating at partial load, and output voltage options. Everything else is secondary.
Total Wattage and Derating
A PSU rated at 600W should not be loaded to 600W in continuous operation. Industry standard practice is to derate to 80% of rated capacity for continuous loads. A 600W unit therefore gives you 480W of reliable continuous power. For a six-node NUC Pro cluster at 80% TDP per node (roughly 60W each), you need 360W continuous. A 600W unit gives you headroom for transient spikes and future node addition.
Efficiency rating at partial load is where most homelab builders make a costly mistake. An 80 Plus Gold PSU might be 90% efficient at 50% load but drop to 82% at 20% load. If your cluster idles most of the time, that lower-load efficiency matters more than the peak efficiency number on the label.
Output Voltage and NUC Pro Compatibility
The Intel NUC Pro uses a barrel jack input rated for 19V DC, 4.74A per unit (roughly 90W per node). A rackmount PSU that outputs 12V requires a DC-DC boost converter to reach 19V. Units that output 19V natively exist but are less common in the 1U form factor.
"Power delivery architecture is the foundation of any compute cluster. Get it wrong and you are not building infrastructure. You are building a liability." -- Adapted from standard data center design principle, widely cited in IEC 62368-1 safety standards for audio/video, IT, and communications technology equipment.
In practice, the DC-DC boost converter approach works reliably when you use converters rated at 150% of the per-node maximum draw. Undersized converters fail silently, causing intermittent node shutdowns that are nearly impossible to diagnose without power monitoring equipment.
Integration Option Comparison Table
The table below compares the three most practical PSU integration approaches for multi-node NUC Pro racks. Option 4 (open-frame ATX) is omitted because it is a variant of Option 2 in practice, not a distinct category for purchasing decisions.
| Integration Approach | Best For | Key Trade-offs |
|---|---|---|
| Individual Power Adapters (managed routing) | 1-3 node deployments, temporary setups, budget-constrained builds | Lowest upfront cost, but poor scalability, cable chaos above 3 nodes, consumer-grade reliability |
| Shared 1U Rackmount PSU with DC Distribution | 4-8 node permanent deployments, homelab enthusiasts, small business IT | Clean cable management, enterprise-grade reliability, requires voltage matching solution for 19V NUC Pro input, moderate upfront cost |
| Dual PSU Redundant Rails with Failover | Production workloads, client-facing services, high-availability homelab clusters | Best reliability and uptime, highest cost, requires 2U of rack space for PSU units, most complex wiring architecture |
Homelab PSU Integration Mistakes That Kill Thermal Performance
The data consistently shows that thermal problems in dense NUC Pro deployments trace back to power supply placement decisions more often than to node cooling configuration. This is counterintuitive to most builders, who focus on node-level airflow and ignore PSU heat contribution entirely.
Mistake 1: Mounting the PSU Directly Above Node Exhaust
NUC Pro nodes exhaust warm air upward and rearward. Mounting a power supply directly above the node bank puts the PSU intake into the warmest air in the rack. The PSU then runs hotter than rated, its fan spins faster, and it injects that heat into the broader rack environment. The correct placement is either below the node bank (where cool air enters from the bottom of the rack) or in a separate section with physical air separation.
Mistake 2: Using Unrated Extension Cables Between PSU and Nodes
A common mistake is using generic DC extension cables that are not rated for the current the NUC Pro draws under load. At 90W per node and 19V, each node pulls roughly 4.7A. A cable rated for 3A will run hot, create voltage drop, and cause intermittent node behavior that looks like a software problem. Always use cables rated for at least 6A at the operating voltage.
Mistake 3: Ignoring Ground Loops in Shared PSU Configurations
When multiple NUC Pro nodes share a common PSU ground rail, ground loop noise can affect node stability and connected network equipment. In practice, this rarely causes outright failures, but it can contribute to unexplained network packet errors or storage controller warnings. A proper DC distribution block with individual ground returns per node eliminates this risk entirely.
Intel NUC Power Management at Scale: What Changes Above Four Nodes
A single NUC Pro is simple to power. Add three more and you encounter behaviors that simply do not appear in single-node testing. The most important is simultaneous peak draw during boot sequences.
When you power on a cluster of six NUC Pro nodes simultaneously, each unit draws significantly more than its idle or even sustained TDP for the first 15-30 seconds during POST, memory training, and storage initialization. This simultaneous peak load can easily be 1.5 to 2 times the steady-state draw. A PSU or distribution system not sized for this transient will either drop voltage, trigger overcurrent protection, or fail to bring all nodes online.
The practical solution is staggered power sequencing. A programmable PDU (power distribution unit) with per-outlet switching lets you bring nodes online at 5-10 second intervals, keeping peak demand within PSU limits. This single feature justifies the cost difference between a basic power strip and a managed PDU in any cluster above four nodes.
Intel NUC power management at the firmware level also matters. The NUC Pro's BIOS includes power limit settings that cap sustained TDP. Configuring these to match your PSU headroom prevents the PSU from being overwhelmed during extended compute workloads, at the cost of some peak compute performance. For homelab use cases running virtualization stacks, this trade-off is almost always worth making.
How HiveRack Mounting Systems Address These PSU Challenges
Most of the problems described above stem from the same root cause: homelab builders are solving hardware architecture problems with zip ties and improvisation because purpose-built mounting solutions for compact compute nodes have been nearly nonexistent. That gap is exactly what HiveRack products are engineered to close.
HiveRack's rackmount kits for systems like the Minisforum MS-01 and Intel NUC Pro are designed with PSU integration as a first-class consideration, not an afterthought. The mounting geometry accounts for PSU placement relative to node airflow paths. Power supply mounting positions are specified in the kit design so builders do not have to guess where to put a centralized PSU without disrupting the thermal architecture of the node bank.
Competitors like Racknex, MyElectronics, and MK1 Manufacturing offer rackmount brackets and enclosures, but their designs typically treat PSU mounting as a separate problem for the builder to solve independently. The result is the same improvised PSU placement that causes the thermal and reliability issues described above. A system where the mounting kit and the PSU integration plan are designed together produces measurably better outcomes for dense deployments.
For builders sourcing a complete solution, the correct sequence is: define your node count and target wattage first, select a PSU integration approach from the options above, then choose a rackmount kit whose physical design accommodates that PSU approach without thermal compromise. HiveRack's product line is built around this sequence.
Frequently Asked Questions
What is the best PSU integration option for a four-node NUC Pro homelab?
A shared 1U rackmount PSU with a DC distribution block is the best choice for four nodes. Size the PSU at a minimum of 400W, choose an 80 Plus Gold rated unit, and ensure your DC distribution block has individually fused outputs per node. This configuration balances cost, reliability, and cable cleanliness better than any other option at this node count.
Can I power multiple NUC Pro nodes from a single 19V power supply?
Yes, provided the PSU output wattage supports the combined load with derating applied. A six-node cluster drawing 60W per node at 80% TDP needs 360W sustained. Choose a PSU rated for at least 450W at 19V and use a distribution block with fused outputs. Verify that the PSU's connector type and output current per rail can support your wiring configuration before committing to a build.
Does NUC Pro PSU mounting affect the warranty on the nodes themselves?
Using a third-party centralized PSU instead of Intel's supplied adapter technically falls outside the recommended configuration. In practice, Intel's warranty covers hardware defects in the node itself, not damage caused by out-of-spec power delivery. Using a centralized PSU that delivers clean, regulated 19V DC at the correct amperage does not damage the node. Using an underpowered or noisy PSU can cause hardware faults that may not be covered under warranty.
What is the minimum PSU wattage for a six-node Intel NUC Pro cluster?
Size for 480W minimum for a six-node cluster. This accounts for 80W per node at peak TDP, 80% derating on the PSU, and headroom for simultaneous boot transients. A 600W unit at 80% derating gives you 480W of reliable continuous output, which is the correct minimum for this configuration. Going smaller than 500W rated capacity for six nodes will cause intermittent problems under load.
How do I prevent ground loops when sharing a PSU across multiple NUC Pro nodes?
Use a DC distribution block that provides individual ground return paths per node rather than a common ground bus shared across all outputs. Keep DC cable runs as short and equal in length as possible. If you observe network packet errors or storage controller warnings after moving to a shared PSU, test by temporarily reverting one node to its original adapter. If the symptoms disappear, ground loop noise is the likely cause and a better distribution block is the fix.
Is a rackmount power supply noisier than individual NUC Pro power adapters?
Acoustically, yes, a 1U rackmount PSU typically runs louder than individual wall-wart adapters because it uses an active cooling fan. However, the noise profile of a single well-chosen rackmount PSU is far more predictable and manageable than the combined noise of six individual adapters each running their own thermal curves. For noise-sensitive environments, choose a rackmount PSU with a fan speed controller or a semi-passive model rated well above your actual load so it spends most of its time at low fan speed.
What PSU integration approach are you running in your NUC Pro cluster, and what trade-offs have you run into that this guide did not cover? Share your setup in the comments.
