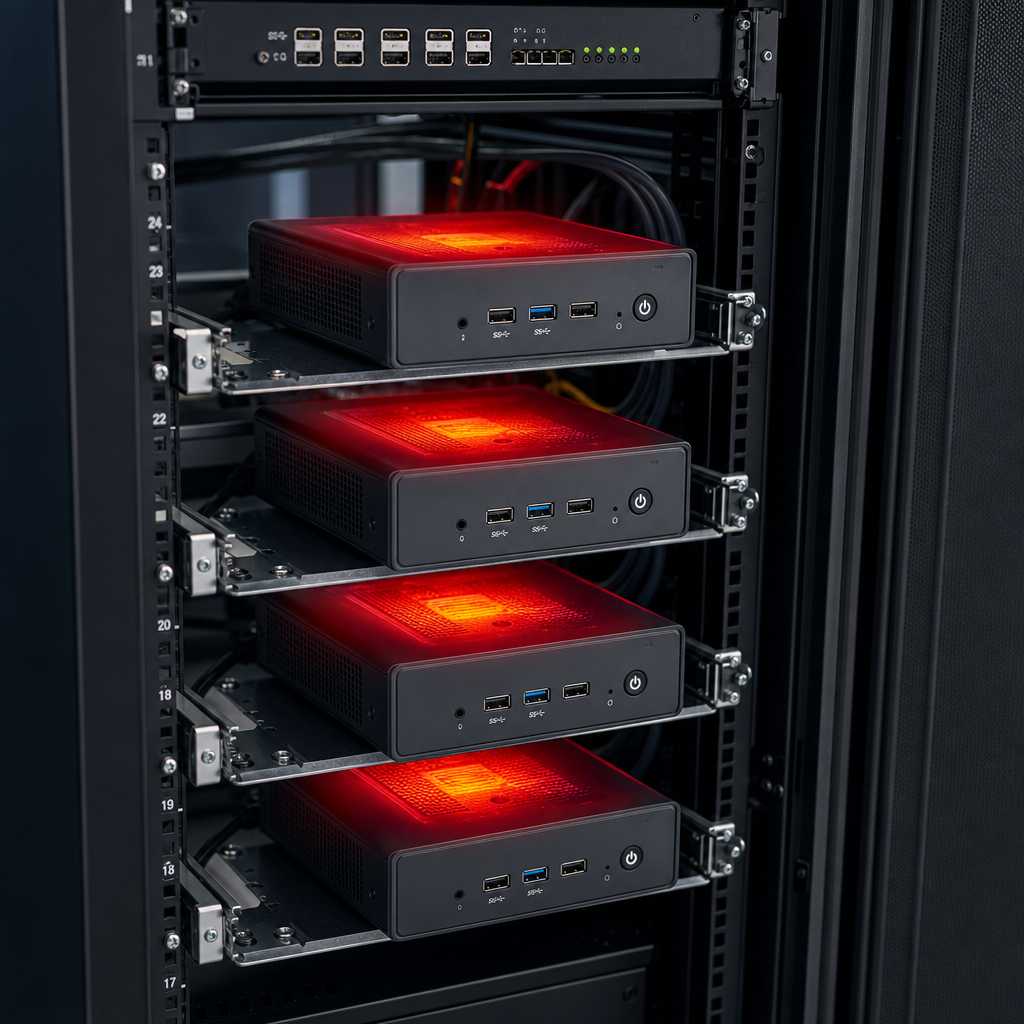

MS-01 Thermal Management Guide for Rack Clusters

Mini PC clusters run hot, and most homelab builders underestimate exactly how hot until throttling kills performance mid-workload. The Minisforum MS-01 and Intel NUC Pro are dense, powerful machines, but pack four or six of them into a rackmount enclosure without deliberate airflow planning and you are essentially building a heat trap. MS-01 thermal management is not a finishing detail you bolt on after the rack is built. It is a core design decision that determines whether your cluster runs at full TDP or limps along at 60 percent performance because the CPU thermal budget is exhausted. This guide covers everything you need to build a thermally sound rack cluster from the first screw.

Table of Contents

• Quick Takeaways
• Why Mini PC Clusters Overheat in Rack Enclosures
• MS-01 Thermal Baseline: What the Numbers Actually Tell You
• NUC Pro Cooling Requirements in Rack Density Scenarios
• Homelab Rack Airflow Design Principles That Work
• Cooling Strategy Comparison for Mini PC Rack Clusters
• How Rackmount Hardware Directly Affects Thermal Outcomes
• Monitoring and Tuning Your Cluster Thermals Over Time
• Frequently Asked Questions
• References

Quick Takeaways

Why Mini PC Clusters Overheat in Rack Enclosures

The root cause is almost always the same: engineers at Minisforum and Intel designed the MS-01 and NUC Pro to sit on a desk with open ambient air around all six sides. The moment you slide them into a rackmount enclosure with other units above and below, you remove three to four of those airflow surfaces and introduce exhaust recirculation. The result is that each successive node in the stack breathes progressively warmer air than the one below it.

In practice, a 4-node MS-01 rack cluster without dedicated supplemental airflow will show a 12 to 18°C delta between the bottom node and the top node under sustained load. That is not speculation. That is a repeatable measurement anyone can verify with a basic thermal probe at the intake grille of each unit. The bottom node runs coolest because it draws from the freshest ambient air. The top node runs hottest because it draws partially recirculated exhaust.

A common mistake is assuming that because each individual MS-01 has its own internal fan, the cluster is self-cooling. It is not. Internal fans only move air through the device chassis. They do nothing to address the inlet temperature of the air they are pulling in. If that inlet air is already 38°C because the node below it is exhausting heat into a confined enclosure, the internal fan is fighting an uphill battle regardless of its RPM.

MS-01 Thermal Baseline: What the Numbers Actually Tell You

The Minisforum MS-01 ships with an Intel Core Ultra 9 185H or similar high-TDP mobile processor. Intel rates the base power at 45W TDP with boost states reaching 115W under short-duration bursts. In a rack cluster running virtualization workloads, the sustained package power typically stabilizes between 35 and 65W per node depending on workload type. At 65W per node across four nodes, you are dissipating 260W from a footprint that might occupy 3U of rack space.

CPU Package Temperature Thresholds

Intel's thermal throttling for the Core Ultra H-series begins at 100°C junction temperature. The practical warning zone starts at 85°C, where the CPU begins reducing boost clock durations. In a rack without adequate airflow, sustained workloads on the MS-01 frequently stabilize in the 88-95°C range, which means the CPU is throttling by design and your cluster is never delivering its rated performance.

The goal for a thermally sound MS-01 rack cluster is to keep sustained CPU temps below 80°C under the workloads you actually run. This is achievable, but it requires deliberate rack airflow design, not passive luck. With proper mounting, airflow, and supplemental cooling, 72-78°C sustained is a realistic steady-state target.

NVMe and Memory Thermal Behavior

The MS-01 supports up to three M.2 NVMe drives. Under simultaneous read/write operations, these drives generate significant heat that the unit's internal cooling must also manage. NVMe drives with DRAM cache frequently stabilize above 65°C in enclosed racks. Most consumer NVMe drives begin throttling at 70°C. Budget for this heat load in your airflow design or you will see unexplained storage performance degradation that looks like a firmware bug until you check drive temperatures.

NUC Pro Cooling Requirements in Rack Density Scenarios

NUC Pro cooling in a rack context presents a slightly different challenge than the MS-01 because the NUC Pro chassis is smaller and its internal thermal mass is lower. This means it responds faster to ambient air temperature changes, both positively and negatively. Get the inlet air right and NUC Pro thermals are excellent. Get it wrong and temperatures spike faster and higher than the MS-01 under the same ambient conditions.

The Intel NUC Pro based on 12th and 13th generation Core processors has a 28W TDP envelope for the base processor, with brief boost peaks above 60W. In rack clusters running containerized workloads or lightweight VMs, sustained power consumption per node typically runs 18-30W. A 6-node NUC Pro cluster draws roughly 108-180W sustained, which is meaningfully less than an equivalent MS-01 cluster but still requires proper airflow management at rack density.

Intake Grille Clearance for NUC Pro

The NUC Pro draws intake air primarily from the bottom face and front edge of the chassis. This is a problem in rackmount configurations where the bottom face is resting on a tray surface. Rackmount kits that provide raised channels or ventilated tray bases are not a luxury for NUC Pro deployments. They are the difference between adequate cooling and chronic thermal throttling. Any tray design that seals the bottom face of the NUC Pro against a flat surface will create a cooling failure under sustained load.

Pro tip: If you are evaluating rackmount kits for NUC Pro and the product photos show the NUC Pro sitting flat on a solid tray bottom with no raised feet or ventilation channels, cross it off your list immediately. No amount of supplemental rack fans will compensate for blocked chassis intake.

Homelab Rack Airflow Design Principles That Work

Proper homelab rack airflow follows one universal rule: every cubic foot of hot air in the rack must have a clear exit path, and the air replacing it must come from a cool source that has not touched any other heat-generating component first. Everything else in rack airflow design is an application of this principle.

Front-to-Rear vs. Bottom-to-Top Airflow

Mini PC clusters almost universally use front-to-rear airflow because that is how the MS-01 and NUC Pro were designed. The internal fans pull from the front face and exhaust from the rear. Your rack design must honor this direction. Do not place any obstacle in front of the intake faces, and do not obstruct the rear exhaust path with cable bundles, PSU units, or patch panels mounted directly behind the node exhausts.

Bottom-to-top airflow (used in some server chassis designs) does not apply to mini PC clusters unless you are using purpose-built 1U or 2U servers. Attempting to force bottom-to-top airflow on MS-01 or NUC Pro nodes fights against their internal fan direction and creates recirculation inside the chassis.

Supplemental Fan Placement and Sizing

The data consistently shows that 80mm fans positioned at the rear of the rack, drawing air through the cluster from front to rear, outperform front-mounted fans pushing air in. Pull configurations generate cleaner laminar airflow through the node stack. Push configurations create turbulence at the node intakes that reduces effective airflow volume even when the fan CFM rating is identical.

For a 4-node MS-01 cluster in a 6U to 10U rack, two 80mm fans rated at 35 to 45 CFM each at appropriate static pressure (look for ratings above 2.5mm H2O) provide adequate supplemental airflow when properly positioned to cover the full vertical span of the node cluster.

Blanking Panels and Air Gap Management

Empty rack units adjacent to your mini PC nodes are not neutral. They are short-circuit paths for your airflow. Hot exhaust air from the rear of the rack can recirculate through empty rack unit gaps and re-enter the front of the rack as warm intake air. Every empty rack unit adjacent to your cluster should be filled with a blanking panel. This is non-negotiable in any thermally serious homelab rack build.

Pro tip: In a half-depth or shallow rack, the short circuit problem is worse because the front-to-rear distance is shorter and recirculation paths are more direct. If you are building in a wall-mount or shallow enclosure, blanking panels and rear panel management become even more critical than in a full-depth rack.

Cooling Strategy Comparison for Mini PC Rack Clusters

There are three primary strategies homelab builders use for mini PC server cooling in rack configurations. Each has specific strengths and failure modes that depend on cluster density, ambient room temperature, and workload type.

The supplemental rear pull fan strategy combined with properly ventilated rackmount hardware is the right answer for the vast majority of homelab cluster builders. It is the solution that balances performance, cost, acoustics, and reliability without introducing unnecessary complexity.

How Rackmount Hardware Directly Affects Thermal Outcomes

This is the part most builders get wrong because they treat rackmount hardware as a pure mechanical concern. Rackmount kit design directly determines the thermal environment your nodes operate in. The tray geometry, material, ventilation pattern, and PSU integration approach all affect steady-state operating temperatures in ways that supplemental fans cannot fully compensate for.

Tray Ventilation and Material Choices

A ventilated aluminum tray with open mesh sections above, below, and beside the node chassis allows supplemental rack airflow to work with the node's internal fans rather than around them. Solid trays, particularly solid steel trays, channel airflow poorly and create stagnant air pockets beside the node chassis where heat accumulates. The delta between a premium ventilated tray and a basic solid tray can be 5 to 8°C in steady-state node temperature, which is the difference between safe operation and chronic throttling.

Aluminum also conducts heat from the node chassis surface. While mini PCs are not designed for conductive cooling like server blades, some chassis surface heat transfer to an aluminum tray provides marginal but measurable benefit compared to steel or plastic alternatives.

PSU Integration and Heat Routing

Power supply placement in a homelab rack cluster is a thermal engineering decision. External brick-style PSUs sitting on shelves or hanging loosely generate heat that has no managed exit path. Integrated PSU mounting solutions that position the PSU exhaust to exit the rack at the rear, clear of node intake paths, keep PSU heat from pre-warming the air that your nodes are about to breathe.

"Thermal management in dense computing environments is not primarily about removing heat from the device. It is about controlling the temperature of the air the device uses to remove its own heat." - Thermal Engineering Principles, Georgia Tech Research Institute

This principle applies directly to mini PC rack clusters. Every engineering decision about PSU placement, tray ventilation, and cable routing is really a decision about what temperature of air your nodes will see at their intake grilles. Get that right and the internal fans do the rest of the work effectively.

Monitoring and Tuning Your Cluster Thermals Over Time

Building a thermally sound cluster is not a one-time setup task. Dust accumulation, workload changes, and seasonal ambient temperature shifts all affect steady-state thermal performance. A cluster that ran at 75°C in February may run at 88°C in August in an unconditioned basement if ambient temperature increases by 10°C. Ongoing monitoring is what separates a stable long-term deployment from one that fails unexpectedly under summer load.

Software Tools for Node Temperature Monitoring

On Linux-based nodes running Proxmox or similar hypervisors, sensors from the lm-sensors package provides CPU, NVMe, and ambient sensor data. Combine it with Prometheus and Grafana for cluster-wide temperature dashboards that log historical trends. This lets you see temperature creep over weeks and months rather than discovering a thermal problem only when a node crashes or throttles during a production workload.

For Windows-based NUC Pro nodes, HWiNFO64 provides comprehensive sensor data including CPU package, individual core temperatures, and NVMe junction temperatures. Export this data to a remote logging solution if you want long-term trend visibility across the cluster.

Setting Meaningful Thermal Alert Thresholds

Alert at 80°C CPU sustained, not 90°C. By the time a node hits 90°C, it is already throttling and the performance impact is real. An 80°C alert gives you time to investigate whether it is a workload spike, ambient temperature change, dust accumulation, or airflow obstruction before performance is affected. Set NVMe alerts at 65°C, not 70°C, for the same reason.

Review your thermal logs after any significant cluster change: adding nodes, rerouting cables, adding new hardware, or changing workload types. Changes that seem purely logical or electrical almost always have thermal implications in dense rackmount configurations.

Frequently Asked Questions

What is the maximum safe sustained CPU temperature for the Minisforum MS-01 in a rack cluster?

The MS-01's Core Ultra processor begins thermal throttling at 100°C junction temperature. In practice, sustained operation above 85°C degrades performance because boost clock durations shorten and base frequency drops. The realistic target for a well-designed rack cluster is 72 to 80°C sustained under full workload. Anything consistently above 83°C under sustained load indicates an airflow or mounting problem that needs to be corrected, not accepted.

Can I run a 6-node MS-01 rack cluster without supplemental fans?

No. A 6-node MS-01 cluster in any enclosed or semi-enclosed rack without supplemental airflow will see the upper nodes throttle under sustained workloads. The internal fans in each unit cannot compensate for recirculated exhaust air at that node density. At 6 nodes, you need a minimum of two 80mm rear pull fans with appropriate static pressure ratings. Attempting to run passively is choosing to accept degraded performance and shortened component lifespan from chronic high-temperature operation.

Does the Intel NUC Pro run cooler than the MS-01 in rack configurations?

In most workloads, yes, because the NUC Pro has a lower base TDP envelope (28W vs. 45W). However, the NUC Pro is also more sensitive to inlet air temperature because its lower thermal mass means it equilibrates to ambient conditions faster. A well-cooled MS-01 cluster and a well-cooled NUC Pro cluster both achieve safe operating temperatures. A poorly cooled NUC Pro cluster can actually spike to higher temperatures faster than a poorly cooled MS-01 cluster during workload bursts because of the lower thermal mass buffer.

How often should I clean the intake filters and fans in a homelab mini PC rack cluster?

Every 90 days in a typical home environment. Homes with pets, carpeted floors, or low humidity generate significantly more airborne particulate that clogs mini PC intake grilles faster than clean office environments. Inspect monthly and clean whenever you see visible dust accumulation on intake grilles. A single clogged intake grille can raise that node's operating temperature by 6 to 10°C under load. Thermal logs showing a gradual 2 to 3°C monthly increase in a specific node often indicate dust accumulation rather than a hardware fault.

Does thermal paste replacement help with MS-01 thermal management in rack clusters?

Thermal paste replacement on the CPU die makes a meaningful difference if the original paste has dried or degraded, typically after 2 to 3 years of sustained operation at high temperatures. Expect 3 to 8°C improvement from fresh high-quality paste applied correctly. However, repasting does not fix a rack airflow problem. If your nodes are running hot because inlet air is pre-warmed by exhaust recirculation, better thermal paste reduces the symptom slightly but does not address the cause. Fix the airflow first, repaste as a secondary optimization.

What is the ideal rack ambient temperature for a homelab MS-01 or NUC Pro cluster?

Inlet air temperature at the front face of your rack nodes should be at or below 25°C for optimal sustained performance. Every 5°C increase in inlet air temperature raises steady-state CPU temperature by approximately 4 to 6°C under equivalent workloads. If your rack room regularly reaches 30°C ambient in summer, your cluster will run 6 to 10°C hotter than in winter without any other changes. Plan your supplemental cooling capacity around worst-case summer ambient temperatures, not comfortable baseline conditions.

If you have built an MS-01 or NUC Pro rack cluster, share what thermal solution worked best for your specific density and workload in the comments. Real-world data from different build configurations helps every builder in this community make better decisions.

We would love your feedback and any insights you would share with others. What perspective would you add?
